Front axle support, 4-wheel for BMW 8 Series G14 Convertible 840dX (2025)

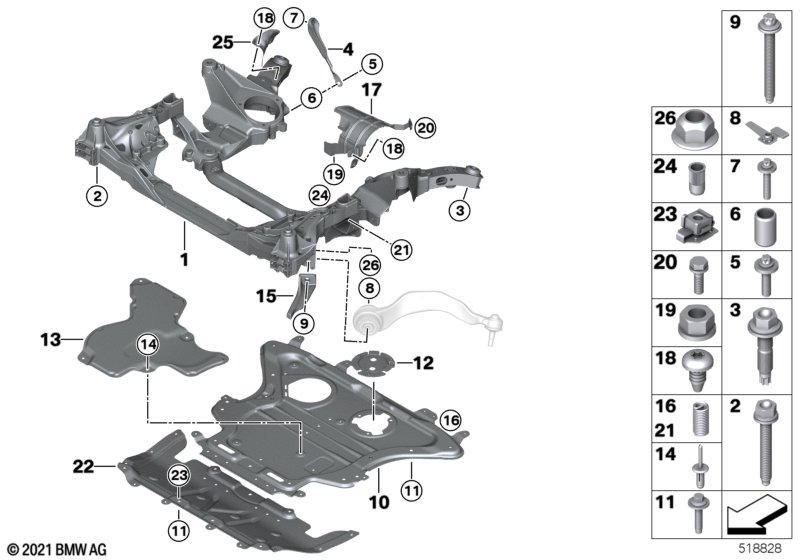

This Front axle support, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106887340 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 04 | Brace, engine mount, right | 1 | 31106861198 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Protection foil | 2 | 07147210555 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt with washer | M8X34 | 1 | 31106866494 | Shop at ECS Tuning | |||||
| 06 | Threaded plug | M8X16-A2 | 1 | 07129908514 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | M8X45-10.9 | 1 | 31106866496 | Shop at ECS Tuning | |||||
| 09 | ASA bolt with washer | M14X127-10.9 | 2 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| 10 | Stiffening plate without cross-member | 1 | 31106887546 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M8X40 | 12 | 31106870648 | Shop at ECS Tuning | |||||
| 12 | Cover, structural reinforcement panel | AWD | 1 | 31116865263 | Shop at ECS Tuning | |||||
| 13 | Soundproof, structural reinforcement frt | 1 | 31116864591 | Shop at ECS Tuning | ||||||
| 14 | Blind rivet | 4 | 07147234212 | Shop at ECS Tuning | ||||||
| 16 | Heli-Coil threaded insert | M8X20-A2 | 12 | 31106868376 | Shop at ECS Tuning | |||||
| 17 | Mudguard | 1 | 31106880578 | Shop at ECS Tuning | ||||||
| 20 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Blind rivet nut, countersunk head | M6 | 2 | 07146953045 | Shop at ECS Tuning | |||||
| 21 | Heli-Coil threaded insert | M6 | 1 | 07149365479 | Shop at ECS Tuning | |||||
| 22 | Underride protection | 1 | 31146868620 | Shop at ECS Tuning | ||||||
| 23 | Cage nut | 2 | 31106870940 | Shop at ECS Tuning | ||||||
| 26 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Convertible 840dX Front axle support, 4-wheel?
- This technical diagram illustrates the Front axle support, 4-wheel within the Front Axle group for the 8 Series G14 Convertible 840dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Front axle support (Part #31106887340).
- Which models use the hardware listed in this Front axle support, 4-wheel?
- The hardware and components featured in the Front axle support, 4-wheel are specific to the 8 Series G14 Convertible 840dX produced during 2025. These technical specifications ensure that parts like the Front axle support (31106887340) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front axle support, 4-wheel assembly?
- Each item in the Front axle support, 4-wheel corresponds to the numbered list below the illustration. For the 8 Series G14 Convertible 840dX, you can identify the Front axle support by locating its position on the schematic, which then links to the official BMW part number 31106887340 for the Front Axle section.
