Swivel/wheel bearing, front, AWD for BMW 7 Series G11 LCI 740dX (2020)

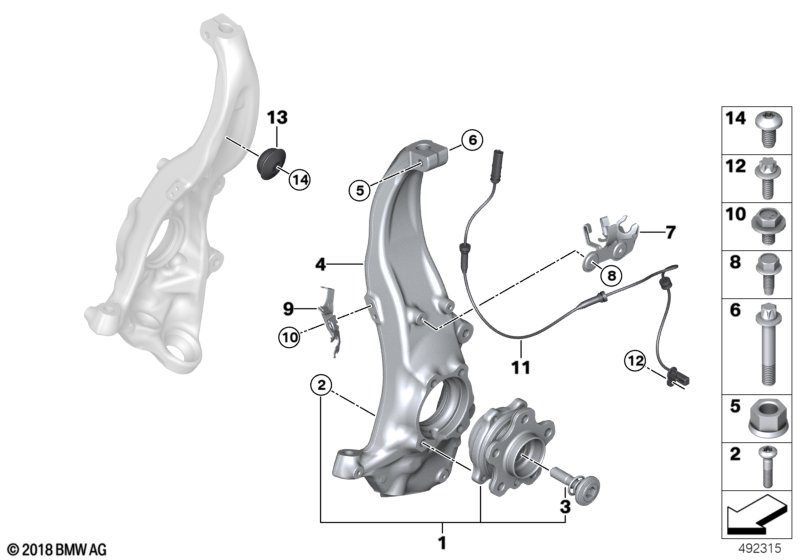

This Swivel/wheel bearing, front, AWD technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub with bearing | 2 | 01/2022 | 33406899175 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Collar screw with spring | M16X1,5X66 | 2 | 01/2022 | 31206866022 | Shop at ECS Tuning | ||||
| -- | Round collar screw | M12X1.25X45 | 8 | 01/2022 | 31206872920 | Shop at ECS Tuning | ||||
| 01 | Wheel hub with bearing | 2 | 01/2023 | 33406899174 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Collar screw with spring | M16X1,5X66 | 2 | 01/2023 | 31206866022 | Shop at ECS Tuning | ||||
| -- | Round collar screw | M12X1.25X45 | 8 | 01/2023 | 31206872920 | Shop at ECS Tuning | ||||
| 01 | Wheel hub with bearing | 2 | 33406899175 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Collar screw with spring | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| -- | Round collar screw | M12X1.25X45 | 8 | 31206872920 | Shop at ECS Tuning | |||||
| 02 | Round collar screw | M12X1.25X45 | 8 | 07/2024 | 31206872920 | Shop at ECS Tuning | ||||
| 02 | Round collar screw | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 03 | Collar screw with spring | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| 04 | Carrier, left | 1 | 31206884379 | Shop at ECS Tuning | ||||||
| 04 | Carrier, right | 1 | 31206884380 | Shop at ECS Tuning | ||||||
| 05 | Combination nut | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Torx screw | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| 07 | Bracket, brake hose, outer left | 1 | 34306861835 | Shop at ECS Tuning | ||||||
| 07 | Bracket, brake hose, outer right | 1 | 34306861836 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X12-10.9-MK- | 4 | 34116868785 | Shop at ECS Tuning | |||||
| 09 | Bracket for brake hose, front left | 1 | 34306879181 | Shop at ECS Tuning | ||||||
| 09 | Bracket for brake hose, front right | 1 | 34306879182 | Shop at ECS Tuning | ||||||
| 10 | Screw self-tapping | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Wheelspeed sensor | 2 | 34526874637 | Shop at ECS Tuning | ||||||
| 12 | ASA screw, self-threading | M6X16 | 2 | 34509804151 | Shop at ECS Tuning | |||||
| For vehicles with Equipment, brake syst. country-specific and M Sport brakes and M sport brake, black, high-gloss |
S212A=Yes S2NHA=No S3M3A=No |
|||||||||
| 13 | Additional weight | 1 | 34106884345 | Shop at ECS Tuning | ||||||
| 14 | Oval-head screw with anti-rotation lock | ISA M6X40 | 1 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
