Front axle support, 4-wheel for BMW 7 Series G12 LCI 730LdX (2022)

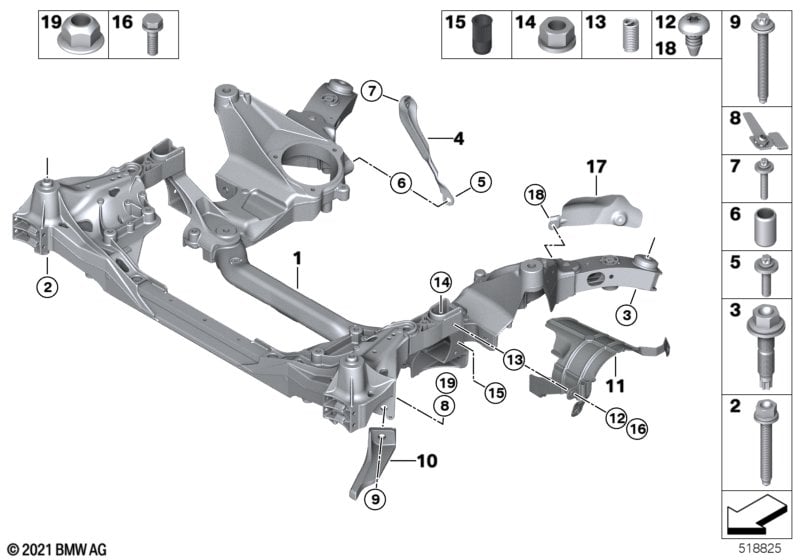

This Front axle support, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106887340 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 04 | Brace, engine mount, left | 1 | 31106871101 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Protection foil | 1 | 07147210555 | Shop at ECS Tuning | ||||||
| 04 | Brace, engine mount, right | 1 | 31106861198 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Protection foil | 1 | 07147210555 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt with washer | M8X34 | 2 | 31106866494 | Shop at ECS Tuning | |||||
| 06 | Threaded plug | M8X16-A2 | 2 | 07129908514 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | M8X45-10.9 | 2 | 31106866496 | Shop at ECS Tuning | |||||
| 09 | ASA bolt with washer | M14X127-10.9 | 2 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| 11 | Mudguard | 1 | 31106880578 | Shop at ECS Tuning | ||||||
| 12 | Torx screw, self-threading | M6X13-ZNNIVSI | 3 | 31146786689 | Shop at ECS Tuning | |||||
| 13 | Heli-Coil threaded insert | M6 | 1 | 07149365479 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Hex bolt with washer | M6X20 | X | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Blind rivet nut, countersunk head | M6 | 2 | 07146953045 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Hex bolt with washer | M6X20 | X | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X20 | 3 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 19 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
