Front subframe, skid plate for BMW 3 Series G21 Touring 330d (2022)

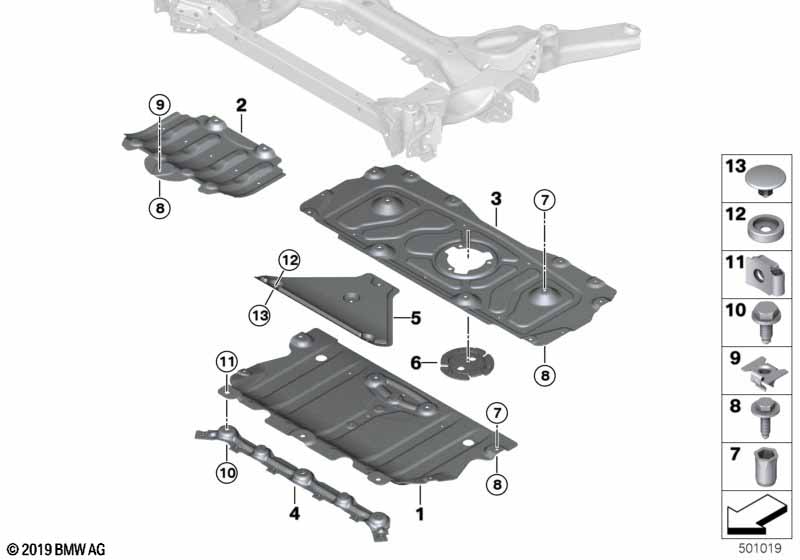

This Front subframe, skid plate technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Adaptive M suspension or M Sports suspension or Skid plate national versions |
S2VFA=Yes S704A=Yes S8SDA=Yes |
||||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 01 | Skid plate steering | 1 | 31146880899 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=Yes S704A=No S8SDA=No |
|||||||||
| 02 | Collision protection steering | 1 | 31146880901 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=No S704A=Yes S8SDA=No |
|||||||||
| 02 | Collision protection steering | 1 | 31146880901 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 03 | Skid plate oil pan front | 1 | 31146880900 | Shop at ECS Tuning | ||||||
| 04 | Holder for engine guard front | 1 | 31146884361 | Shop at ECS Tuning | ||||||
| 05 | Absorber for stiffening plate | 1 | 31116885878 | Shop at ECS Tuning | ||||||
| 06 | Cover, structural reinforcement panel | AWD | 1 | 31116865263 | Shop at ECS Tuning | |||||
| 07 | Blind rivet nut, flat headed | M6 | 12 | 07147311614 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X20-8.8 | 12 | 07119907898 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=Yes S704A=No S8SDA=No |
|||||||||
| 08 | Hex bolt | M6X20-8.8 | 3 | 07119907898 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=No S704A=Yes S8SDA=No |
|||||||||
| 08 | Hex bolt | M6X20-8.8 | 3 | 07119907898 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=Yes S704A=No S8SDA=No |
|||||||||
| 09 | Prestol-cage | M6 ZNS3 | 3 | 37146850307 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive M suspension and M Sports suspension and Skid plate national versions |
S2VFA=No S704A=Yes S8SDA=No |
|||||||||
| 09 | Prestol-cage | M6 ZNS3 | 3 | 37146850307 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 10 | Multi-purpose bolt ASA | M10X25 ZNS3 | 3 | 07146885805 | Shop at ECS Tuning | |||||
| 11 | Clip nut | M10-10 ZNS3 | 3 | 07146887266 | Shop at ECS Tuning | |||||
| 12 | Clip, upper part | 4 | 07146887194 | Shop at ECS Tuning | ||||||
| 13 | Clip, bottom part | 4 | 07146887195 | Shop at ECS Tuning | ||||||
