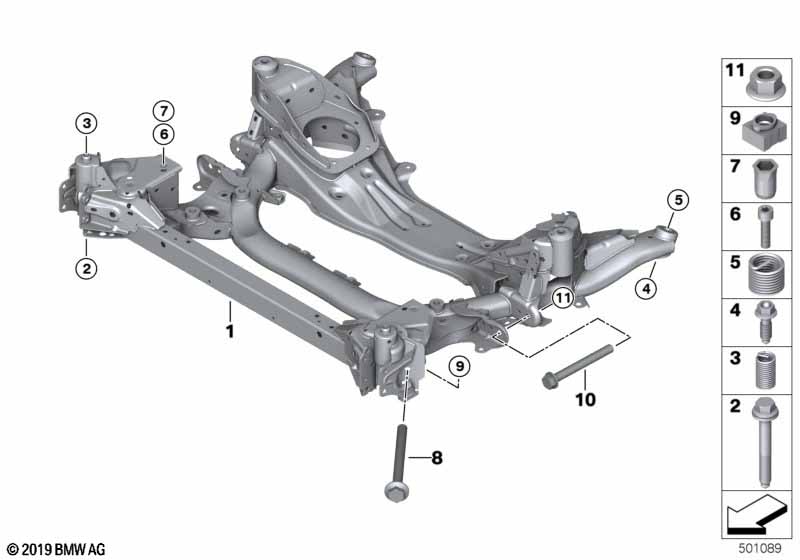

Front axle support, 4-wheel for BMW 3 Series G21 Touring 320dX (2022)
This Front axle support, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover for steering assembly, front left | AWD | 1 | 51719627321 | Shop at ECS Tuning | |||||
| -- | Cover for steering assembly, front right | AWD | 1 | 51719627322 | Shop at ECS Tuning | |||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 01 | Front axle support | AWD | 1 | 31108841116 | Shop at ECS Tuning | |||||
| 02 | Multi-purpose bolt ASA | M12X1,5X90 | 4 | 07146885922 | Shop at ECS Tuning | |||||
| 03 | Heli-Coil threaded insert | M12X1,5X30 | 4 | 33306780501 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M14X42X1,5 | 2 | 07146886209 | Shop at ECS Tuning | |||||
| 05 | Helicoil thread insert | M14X1.5X14 | 2 | 33326869611 | Shop at ECS Tuning | |||||
| 06 | ISA screw | M8X30-8.8-ZNS3 | 4 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 07 | Blind rivet nut, flat headed | M8 | 4 | 07147132312 | Shop at ECS Tuning | |||||
| 08 | Hexagon screw with flange | M12X136,10.9 | 2 | 31106885777 | Shop at ECS Tuning | |||||
| 09 | Cage nut | M12X1,5-10 ZNS3 | 2 | 31106874585 | Shop at ECS Tuning | |||||
| 09 | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M12X1,5X110 | 2 | 07119906460 | Shop at ECS Tuning | |||||
| 11 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
