Front axle wishbone / tension strut AWD for BMW 5 Series G30 LCI 523dX (2023)

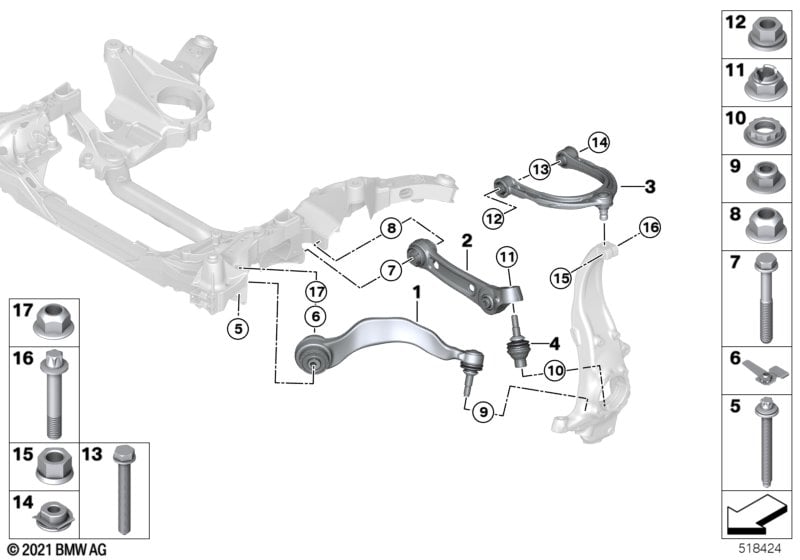

This Front axle wishbone / tension strut AWD technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 523dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.

Front axle wishbone / tension strut AWD
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Tension strut with rubber mounting, left 1 31106861165 Shop at ECS Tuning
01 Tension strut with rubber mounting, rght 1 31106861166 Shop at ECS Tuning
02 Wishbone, bottom, with rubber mount left 1 03/2024 31106861181 Shop at ECS Tuning
02 Wishbone, bottom, with rubber mount left 1 31108873893 Shop at ECS Tuning
02 Wishbone, bottom,with rubber mount right 1 03/2024 31106861182 Shop at ECS Tuning
02 Wishbone, bottom,with rubber mount right 1 31108873894 Shop at ECS Tuning
Standard
03 Wishbone with rubber bushing, upper 2 31106861185 Shop at ECS Tuning
In the case of a repair, if camber
correction
cannot be accomplished any other way,
it is done via
top wishbone.
Camber correction, negative
03 A-arm camber adjustment, upper -30MIN 2 31126870026 Shop at ECS Tuning
In the case of a repair, if camber
correction
cannot be accomplished any other way,
it is done via
top wishbone.
Camber correction, positive
03 A-arm camber adjustment, upper +30MIN 2 31126870025 Shop at ECS Tuning
In the case of a repair, if camber
correction
cannot be accomplished any other way,
it is done via
top wishbone.
04 Wheel suspension joint 2 31106852536 Shop at ECS Tuning
05 ASA bolt with washer M14X127-10.9 2 33316767586 $6.31 Shop at ECS Tuning
07 Hex bolt M14X1,5X110 2 33176760342 $3.50 Shop at ECS Tuning
08 Self-locking collar nut M14X1,5-10 ZNS3 2 33306760349 $1.33 Shop at ECS Tuning
09 Hexagon nut with collar M16X1.5 ZNNIV 2 07146875114 Shop at ECS Tuning
10 Combination nut M30X1,5 ZNS3 2 31106780613 $6.89 Shop at ECS Tuning
11 Hexagon nut with collar M16X1,5-10 ZNS3 2 31106768887 Shop at ECS Tuning
12 Combination nut M10-10 ZNS3 2 33306760585 Shop at ECS Tuning
13 Hex bolt with washer M10X85-U1-10.9 4 07119908592 Shop at ECS Tuning
14 Clip nut M10-10 ZNS3 2 31106866023 Shop at ECS Tuning
15 Combination nut M10-22H ZNS3 2 31106765451 $1.05 Shop at ECS Tuning
16 Torx screw M10X59-10.9 ZNS 2 31106789333 $0.90 Shop at ECS Tuning
17 Self-locking collar nut M14X1,5-10 ZNS3 2 33306760349 $1.33 Shop at ECS Tuning
