Front axle support for BMW 5 Series G38 LCI 535Le (2023)

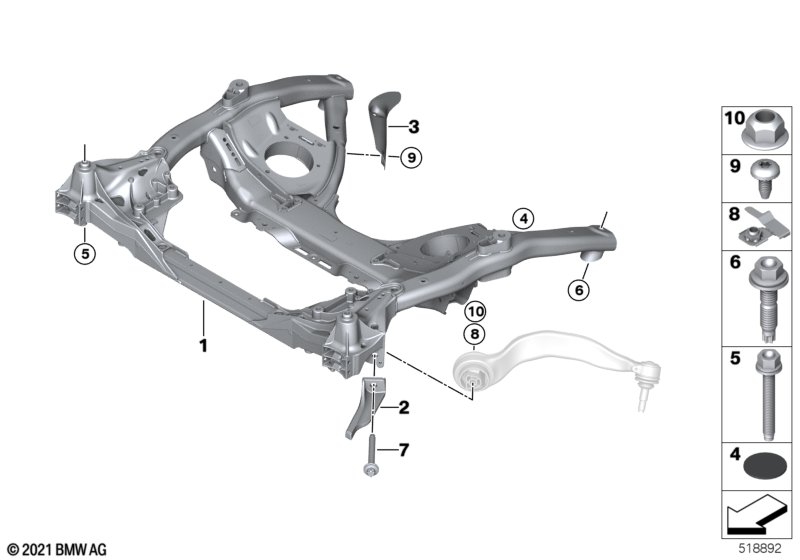

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 LCI 535Le. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106861106 | Shop at ECS Tuning | ||||||
| 02 | Crash lever, left | 1 | 31126863103 | Shop at ECS Tuning | ||||||
| 02 | Crash lever, right | 1 | 31126863104 | Shop at ECS Tuning | ||||||
| 03 | Heat resistant plate | 1 | 31146861394 | Shop at ECS Tuning | ||||||
| 04 | Protection foil | 4 | 07147210555 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 07 | Torx screw with collar | M14X137X1.5 | 2 | 31106871189 | Shop at ECS Tuning | |||||
| 09 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 10 | Self-locking collar nut | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning |
