Spr.strut fr.install.parts AWD for BMW 5 Series G30 LCI 530eX (2023)

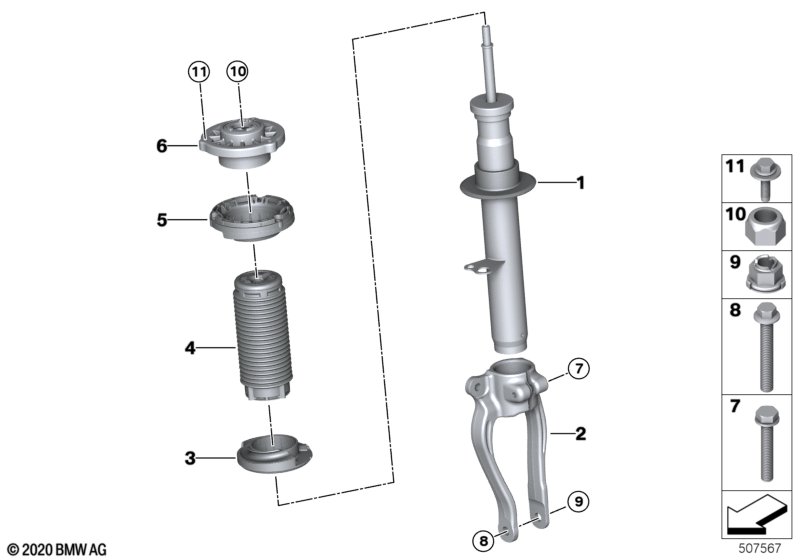

This Spr.strut fr.install.parts AWD technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Adaptive suspension and Chassis & suspens. setup"Adaptive Drive" and Adaptive M suspension and Adaptive suspension package 'Comfort' and 2-axle air suspension and Executive Drive Pro and Executive drive and M sports suspension Professional |
S223A=No S2VAA=No S2VFA=No S2VMA=No S2VRA=No S2VSA=No S2VTA=No S2VWA=No |
||||||||
| 01 | Left front spring strut | AWD PHEV | 1 | 31316896361 | Shop at ECS Tuning | |||||
| 01 | Front right spring strut | AWD PHEV | 1 | 31316896362 | Shop at ECS Tuning | |||||
| 02 | Strut mount, left | 1 | 31126861199 | Shop at ECS Tuning | ||||||
| 02 | Strut mount, right | 1 | 31126861200 | Shop at ECS Tuning | ||||||
| 03 | Spring pad lower | 2 | 31306862570 | Shop at ECS Tuning | ||||||
| 04 | Additional shock absorber, front | 2 | 31336866787 | Shop at ECS Tuning | ||||||
| 05 | Spring pad upper | 2 | 31306862569 | Shop at ECS Tuning | ||||||
| 06 | Guide support | 2 | 31306884485 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Hexagon bolt with flange thread-tapping | M8X30-10.9 ZNS3 | 6 | 31306865312 | Shop at ECS Tuning | |||||
| 07 | Hex screw with collar | M10X60 | 2 | 07119904161 | Shop at ECS Tuning | |||||
| 08 | Hexagon collar screw | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
| 09 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 11 | Hexagon bolt with flange thread-tapping | M8X30-10.9 ZNS3 | 6 | 31306865312 | Shop at ECS Tuning | |||||
