Front axle support for BMW 4 Series G23 Convertible 420i (2024)

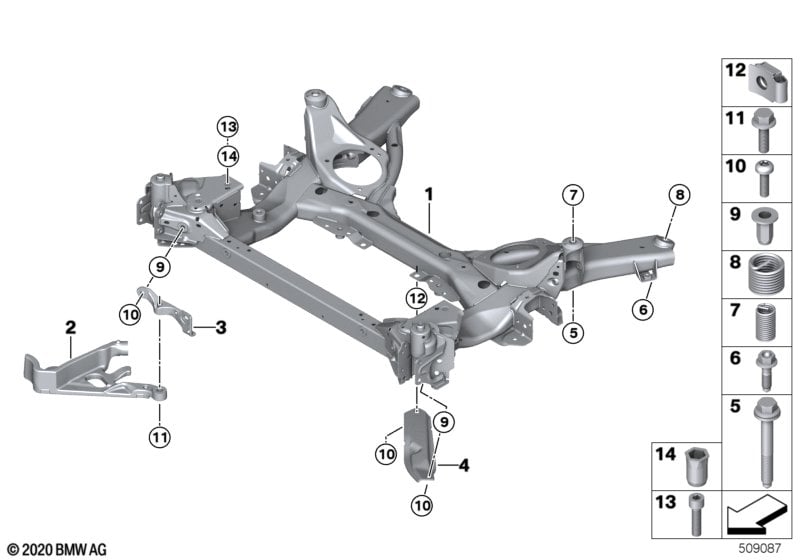

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | RWD | 1 | 31106888478 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Square nut | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| -- | Cage nut | M12X1,5-10 ZNS3 | 2 | 31106874585 | Shop at ECS Tuning | |||||
| 01 | Front axle support | RWD | 1 | 31106888478 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | Slip wedge, left | 1 | 31106882437 | Shop at ECS Tuning | ||||||
| 02 | Slip wedge, right | 1 | 31106882438 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 02 | Part not available separately | 2 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 03 | Adapter, slip wedge, left | 1 | 31106883603 | Shop at ECS Tuning | ||||||
| 03 | Adapter, slip wedge, right | 1 | 31106883604 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | Part not available separately | 2 | 00000000000 | Shop at ECS Tuning | ||||||
| 04 | Strut, slip wedge, left | 1 | 31106883605 | Shop at ECS Tuning | ||||||
| 04 | Strut, slip wedge, right | 1 | 31106883606 | Shop at ECS Tuning | ||||||
| 05 | Multi-purpose bolt ASA | M12X1,5X90 | 4 | 07146885922 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M14X42X1,5 | 2 | 07146886209 | Shop at ECS Tuning | |||||
| 07 | Heli-Coil threaded insert | M12X1,5X30 | 4 | 33306780501 | Shop at ECS Tuning | |||||
| 08 | Helicoil thread insert | M14X1.5X14 | 2 | 33326869611 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 09 | Blind rivet nut, flat headed | M10 | 6 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 09 | Blind rivet nut, flat headed | M10 | 2 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 10 | ISA screw | M10X32.5 | 8 | 22316774293 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 10 | ISA screw | M10X32.5 | 4 | 22316774293 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 11 | Hexagon screw with flange | M14X1.5X40-10.9 | 4 | 09/2021 | 07129909880 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 11 | Part not available separately | 4 | 00000000000 | Shop at ECS Tuning | ||||||
| 12 | Clip nut | M10-10 ZNS3 | 2 | 07146887266 | Shop at ECS Tuning | |||||
| 13 | ISA screw | M8X30-8.8-ZNS3 | 4 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Blind rivet nut, flat headed | M8 | X | 07147132312 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 14 | Blind rivet nut, flat headed | M8 | 4 | 07147132312 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | ISA screw | M8X30-8.8-ZNS3 | X | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
