Strut for EDC frt/swivel&wheel bearings for BMW 3 Series G80 M3 LCI M3 (2025)

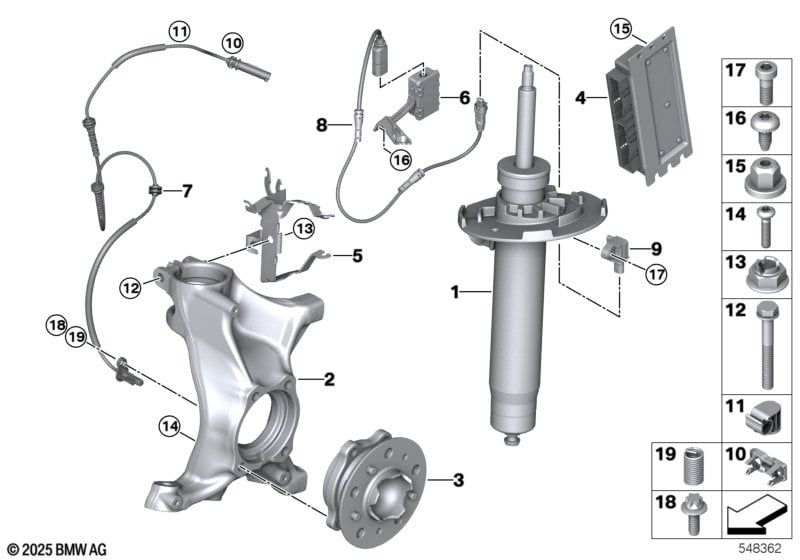

This Strut for EDC frt/swivel&wheel bearings technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 LCI M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring strut, EDC, front left | RWD | 1 | 31318091349 | Shop at ECS Tuning | |||||
| 01 | Spring strut, EDC, front right | RWD | 1 | 31318091350 | Shop at ECS Tuning | |||||
| Standard | ||||||||||
| 02 | Carrier, left | 1 | 31208095663 | Shop at ECS Tuning | ||||||
| 02 | Carrier, right | 1 | 31208095664 | Shop at ECS Tuning | ||||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. Camber correction, negative |
||||||||||
| 02 | Carrier, left | MINUS | 1 | 31217883637 | Shop at ECS Tuning | |||||
| 02 | Carrier, right | MINUS | 1 | 31217883638 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. Camber correction, positive |
||||||||||
| 02 | Swivel bearing left | PLUS | 1 | 31217883635 | Shop at ECS Tuning | |||||
| 02 | Swivel bearing right | PLUS | 1 | 31217883636 | Shop at ECS Tuning | |||||
| 03 | Wheel hub with bearing, front | 2 | 31108095643 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Round collar screw | M12X1.25X45 | 2 | 31206872920 | Shop at ECS Tuning | |||||
| 04 | Control unit for VDP | MID | 1 | 37148867451 | Shop at ECS Tuning | |||||
| 05 | Holder | RWD | 1 | 34308095703 | Shop at ECS Tuning | |||||
| 05 | Holder | RWD | 1 | 34308095704 | Shop at ECS Tuning | |||||
| 06 | Holder for variable damper control left | 1 | 37106891977 | Shop at ECS Tuning | ||||||
| 06 | Holder for variable damper control right | 1 | 37106891978 | Shop at ECS Tuning | ||||||
| 07 | Pulse generator DSC, front | 2 | 34521544002 | Shop at ECS Tuning | ||||||
| 08 | Cable for wheel acceleration sensor | 2 | 37148091442 | Shop at ECS Tuning | ||||||
| 09 | Accelerating sensor | 2 | 37146861319 | Shop at ECS Tuning | ||||||
| 10 | Holder | 2 | 34526886651 | Shop at ECS Tuning | ||||||
| 11 | Brake pipe bracket | 2 | 34326855500 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M10X80-U1-10.9 | 2 | 07119905418 | $3.12 | Shop at ECS Tuning | ||||
| 13 | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| 14 | Round collar screw | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 15 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 17 | Fillister-head screw | M6X16-8.8-ZNS3 | 2 | 07119906392 | Shop at ECS Tuning | |||||
| 18 | ASA screw, self-threading | M6X16 | 2 | 34509804151 | Shop at ECS Tuning | |||||
| 19 | Heli-Coil threaded insert | M6X12 | 1 | 33306786621 | Shop at ECS Tuning | |||||
