Guide support/spring pad/attaching parts for BMW 4 Series G82 M4 Coupé M4 (2024)

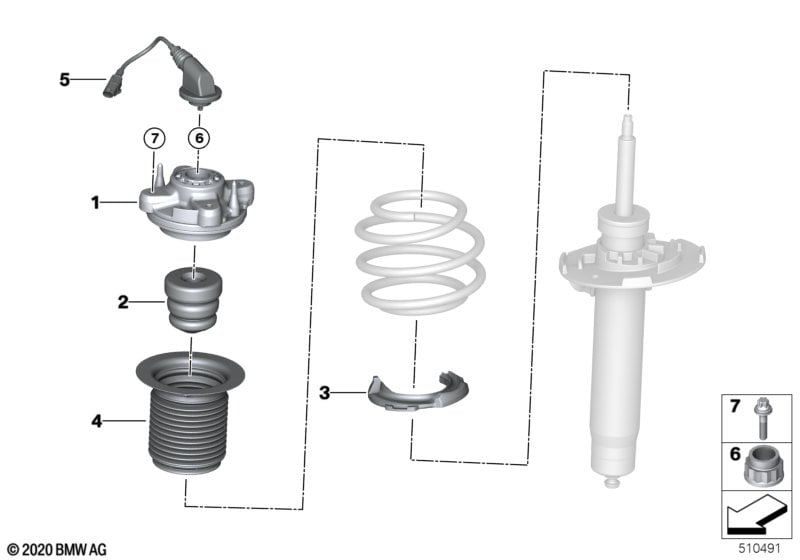

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left guide support | 1 | 31308095851 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | BM8X40 ZNS3 | 4 | 07148747784 | Shop at ECS Tuning | |||||
| 01 | Right guide support | 1 | 31308095852 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | BM8X40 ZNS3 | 4 | 07148747784 | Shop at ECS Tuning | |||||
| 02 | Auxiliary shock absorber | 2 | 31338091402 | Shop at ECS Tuning | ||||||
| 03 | Spring pad lower | 2 | 31336871813 | Shop at ECS Tuning | ||||||
| 04 | Piston rod protection top | 2 | 31336871812 | Shop at ECS Tuning | ||||||
| 05 | Adapter cable for EDC | 2 | 31308091397 | Shop at ECS Tuning | ||||||
| 06 | Nut, self-locking | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning | |||||
| 07 | Star-socket screw | BM8X40 ZNS3 | 8 | 07148747784 | Shop at ECS Tuning | |||||
