Headlight vertical aim control sensor for BMW MINI Cabrio F57 JCW (2018)

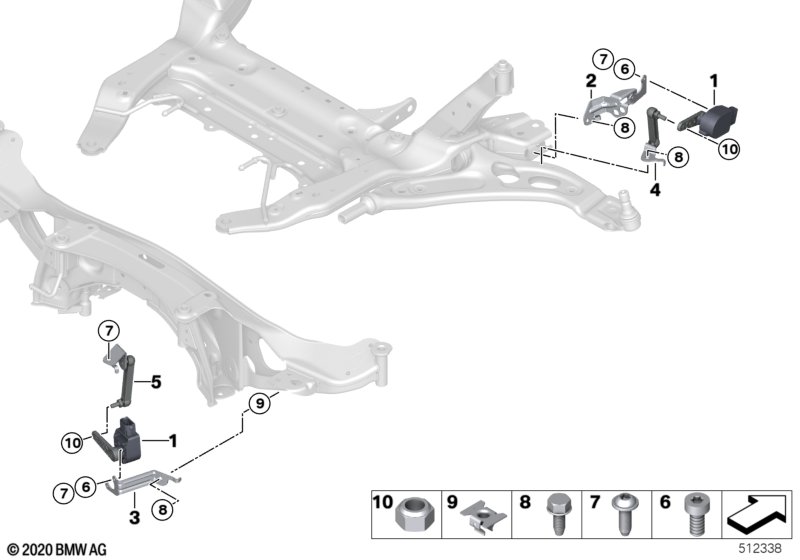

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Rear | ||||||||||
| 01 | Level sensor | 1 | 37146870200 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Extra package, EU-specific and LED headlight with expanded content Front |
L807A=Yes S230A=Yes S5A4A=Yes |
|||||||||
| 01 | Level sensor | 1 | 07/2017 | 37146870200 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Extra package, EU-specific and LED headlight with expanded content |
L807A=Yes S230A=Yes S5A4A=Yes |
|||||||||
| 02 | Bracket, level sensor front | 1 | 07/2017 | 37146853711 | Shop at ECS Tuning | |||||
| 03 | Bracket for height sensor, rear | 1 | 37146853714 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Extra package, EU-specific and LED headlight with expanded content |
L807A=Yes S230A=Yes S5A4A=Yes |
|||||||||
| 04 | Control rod, front | 1 | 07/2017 | 37146853709 | Shop at ECS Tuning | |||||
| 05 | Control rod, rear | 1 | 37146853713 | Shop at ECS Tuning | ||||||
| Rear | ||||||||||
| 06 | ISA screw | M5X10 | 2 | 07/2017 | 03/2018 | 07129904491 | Shop at ECS Tuning | |||
| 08 | Hexagon screw, self-threading | M6X16 | 2 | 07/2017 | 03/2018 | 37146869771 | Shop at ECS Tuning | |||
| 09 | Prestol-cage | M6 ZNS3 | 1 | 37146850307 | Shop at ECS Tuning | |||||
| Rear | ||||||||||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07/2017 | 03/2018 | 07147575163 | $0.25 | Shop at ECS Tuning | ||
