Swivel/wheel bearing, front, AWD for BMW 4 Series G26 Gran Coupé 430dX (2024)

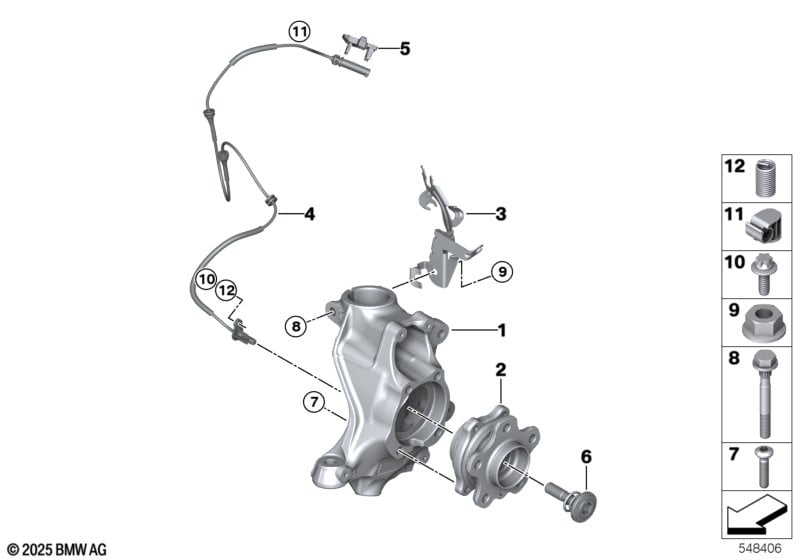

This Swivel/wheel bearing, front, AWD technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Camber correction, positive | ||||||||||
| 01 | Pivot bearing, camber correction, left | AWD PLUS | 1 | 31216892517 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Swivel bearing, camber correction, right | AWD PLUS | 1 | 31216892518 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| Camber correction, negative | ||||||||||
| 01 | Pivot bearing, camber correction, left | AWD MINUS | 1 | 31216892515 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Swivel bearing, camber correction, right | AWD MINUS | 1 | 31216892516 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| Standard | ||||||||||
| 01 | Carrier, left | AWD | 1 | 31206892509 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Carrier, right | AWD | 1 | 31206892510 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| For vehicles with Adaptive M suspension or M Sports suspension Camber correction, positive |
S2VFA=Yes S704A=Yes |
|||||||||
| 01 | Carrier, left | AWD | 1 | 31206892509 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Carrier, right | AWD | 1 | 31206892510 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| For vehicles with Adaptive M suspension or M Sports suspension Camber correction, negative |
S2VFA=Yes S704A=Yes |
|||||||||
| 01 | Pivot bearing, camber correction, left | AWD MINUS MINUS | 1 | 31216897739 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Swivel bearing, camber correction, right | AWD MINUS MINUS | 1 | 31216897740 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| For vehicles with Adaptive M suspension or M Sports suspension Standard |
S2VFA=Yes S704A=Yes |
|||||||||
| 01 | Pivot bearing, camber correction, left | AWD MINUS | 1 | 31216892515 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 01 | Swivel bearing, camber correction, right | AWD MINUS | 1 | 31216892516 | Shop at ECS Tuning | |||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done with a swivel bearing. |
||||||||||
| 02 | Wheel hub with bearing | 2 | 33406899175 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Collar screw with spring | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| -- | Round collar screw | M12X1.25X45 | 8 | 31206872920 | Shop at ECS Tuning | |||||
| 03 | Bracket for brake hose, front left | 1 | 34306877751 | Shop at ECS Tuning | ||||||
| 03 | Bracket for brake hose, front right | 1 | 34306877752 | Shop at ECS Tuning | ||||||
| 04 | Pulse generator DSC, front | 2 | 34525A16AC6 | Shop at ECS Tuning | ||||||
| 05 | Holder | 2 | 34526886651 | Shop at ECS Tuning | ||||||
| 06 | Collar screw with spring | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| 07 | Round collar screw | M12X1.25X45 | 8 | 07/2024 | 31206872920 | Shop at ECS Tuning | ||||
| 07 | Round collar screw | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 08 | Multi-purpose bolt ASA | M10X85 ZNS3 | 2 | 07146887408 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10X1-10-ZNS3 | 2 | 07119905307 | $1.28 | Shop at ECS Tuning | ||||
| 10 | ASA screw, self-threading | M6X16 | 2 | 34509804151 | Shop at ECS Tuning | |||||
| 11 | Brake pipe bracket | 2 | 34326855500 | Shop at ECS Tuning | ||||||
