Front axle transmission 168AL for BMW 3 Series G20 Sedan 320dX (2022)

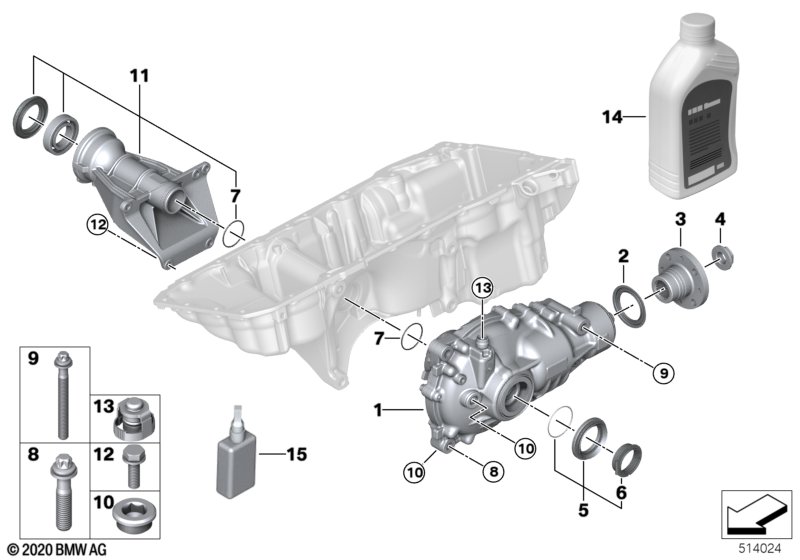

This Front axle transmission 168AL technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Final drive (front axle) | I=2,813 | 1 | 31508741855 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | D=22,4 | 2 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| -- | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 44X69X10/15 | 1 | 31527507697 | $8.59 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Thread lock, high-strength | 10ML | X | 83192210337 | Shop at ECS Tuning | |||||
| 03 | Drive flange | VAG 168AL | 1 | 11/2022 | 31508838733 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | VAG 168AL | 1 | 11/2022 | 31508838864 | Shop at ECS Tuning | ||||
| 03 | Drive flange | VAG 168NG | 1 | 31508856549 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | VAG 168AL | 1 | 31508838864 | Shop at ECS Tuning | |||||
| 04 | Self-locking collar nut | VAG 168AL | 1 | 31508838864 | Shop at ECS Tuning | |||||
| 05 | Repair kit output radial shaft seal | 44X67 | 2 | 31508860349 | Shop at ECS Tuning | |||||
| 06 | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 07 | O-ring | D=39MM | 2 | 31511213527 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Screw, outside Torx with washer | M12X1,5X55-10.9 | 3 | 31517589001 | $2.27 | Shop at ECS Tuning | ||||
| 09 | Screw, outside Torx with washer | M12X1,5X105 | 1 | 31517589002 | $2.47 | Shop at ECS Tuning | ||||
| 10 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 11 | Supporting bracket | 1 | 31508485028 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lock Ring | D=22,4 | 1 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| -- | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X25 ZNS3 | 4 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Breather pipe | 1 | 33108842550 | Shop at ECS Tuning | ||||||
| 14 | Hypoid axle oil G5 | 0,5L | X | 03/2020 | 83222471487 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
