Frnt axle support,wishbone/tension strut for BMW 6 Series E63 M6 (2010)

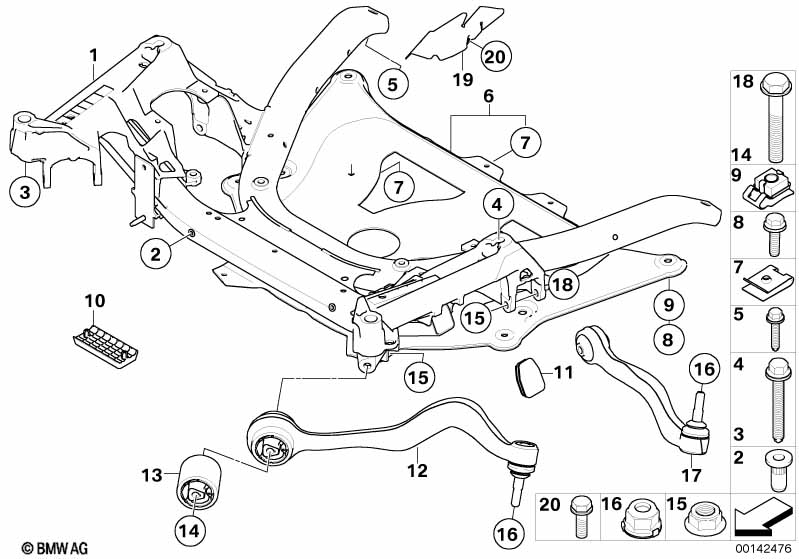

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31112283741 | $1245.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind rivet nut, flat headed | M6 | 1 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 02 | Blind rivet nut, flat headed | M6 | 11 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 04 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | Shop at ECS Tuning | ||||
| 05 | Hexagon screw with flange | M12X1,5X65-10.9 | 2 | 31106770256 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Reinforcement plate | 1 | 31112282970 | $397.30 | Shop at ECS Tuning | |||||
| 07 | Body nut | ST 4,8-15-ZNS3 | 6 | 07129904215 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Hexagon screw with flange | M10X35-10.9ZNS3 | 5 | 31106772199 | $1.61 | Shop at ECS Tuning | ||||
| 09 | Plug-in nut | M10-10-ZNS3 | 3 | 31106779393 | $1.95 | Shop at ECS Tuning | ||||
| 10 | Jack fixture | 1 | 31112282957 | $5.41 | Shop at ECS Tuning | |||||
| 11 | Blind plug | 2 | 31116757537 | $1.19 | Shop at ECS Tuning | |||||
| 12 | Repair set for radius rod, right | VALUE PARTS | 1 | 31102348048 | ENDED | Shop at ECS Tuning | ||||
| Fastening parts enclosed | ||||||||||
| 12 | Repair set for radius rod, left | VALUE PARTS | 1 | 31102348049 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 13 | Hydrobearing | 2 | 31126765992 | Shop at ECS Tuning | ||||||
| EXCHANGEABLE IN PAIRS ONLY | ||||||||||
| Important! | ||||||||||
| 13 | Set rubber mounting f pull rod | 1 | 31120305612 | $98.93 | ENDED | Shop at ECS Tuning | ||||
| REPLACED BY SINGLE PARTS. | ||||||||||
| 14 | Hex bolt with washer | M12X1,5X120 | 2 | 31106769441 | $2.96 | Shop at ECS Tuning | ||||
| 15 | Self-locking collar nut | M12X1,5-10 ZNS3 | 4 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Combination nut | M14X1,5-10ZNNIV | 4 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 17 | Repair kit, wishbone, left | VALUE PARTS | 1 | 31122347983 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 17 | Repair kit, wishbone, right | VALUE PARTS | 1 | 31122347984 | Shop at ECS Tuning | |||||
| Fastening parts enclosed | ||||||||||
| 18 | Hex bolt with washer | M12X1,5X100 | 2 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 19 | Heat protection plate left | 1 | 31146761011 | $7.04 | Shop at ECS Tuning | |||||
| 19 | Heat Protection Plate Right | 1 | 31146761012 | $7.04 | Shop at ECS Tuning | |||||
| 20 | Hex bolt with washer | M6X20 | 4 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 M6 Frnt axle support,wishbone/tension strut?
- This technical diagram illustrates the Frnt axle support,wishbone/tension strut within the Front Axle group for the 6 Series E63 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Front axle support (Part #31112283741).
- Which models use the hardware listed in this Frnt axle support,wishbone/tension strut?
- The hardware and components featured in the Frnt axle support,wishbone/tension strut are specific to the 6 Series E63 M6 produced during 2010. These technical specifications ensure that parts like the Front axle support (31112283741) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Frnt axle support,wishbone/tension strut assembly?
- Each item in the Frnt axle support,wishbone/tension strut corresponds to the numbered list below the illustration. For the 6 Series E63 M6, you can identify the Front axle support by locating its position on the schematic, which then links to the official BMW part number 31112283741 for the Front Axle section.
