Stabilizer, front for BMW 3 Series G20 Sedan LCI 330d (2024)

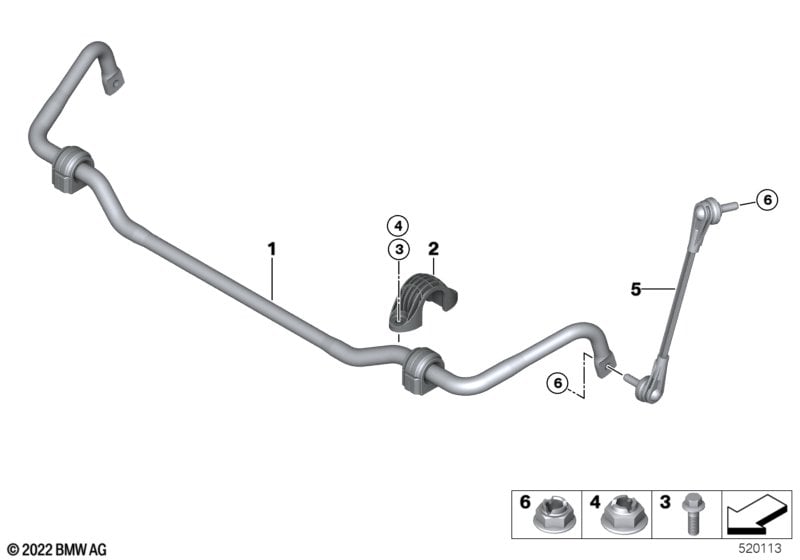

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Adaptive M suspension or M Sports suspension |
S2VFA=Yes S704A=Yes |
|||||||||
| 01 | Stabilizer front with rubber mounting | 1 | 31306853612 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hexagon nut with collar | M10-10 ZNS3 | 4 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive M suspension and M Sports suspension |
S2VFA=No S704A=No |
|||||||||
| 01 | Stabilizer, front | 1 | 31305A089B3 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hexagon nut with collar | M10-10 ZNS3 | 4 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| 02 | Stabilizer support | 2 | 31306890581 | Shop at ECS Tuning | ||||||
| 03 | Multi-purpose bolt ASA | M8X35 10,9 | 4 | 07146892349 | Shop at ECS Tuning | |||||
| 04 | Hexagon nut with collar | M8-10 ZNS3 | 4 | 31306798572 | Shop at ECS Tuning | |||||
| 05 | Swing support, front, left | 1 | 31306893359 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 05 | Swing support, front, right | 1 | 31306893360 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| 06 | Hexagon nut with collar | M10-10 ZNS3 | 4 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330d Stabilizer, front?
- This technical diagram illustrates the Stabilizer, front within the Front Axle group for the 3 Series G20 Sedan LCI 330d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Stabilizer front with rubber mounting (Part #31306853612).
- Which models use the hardware listed in this Stabilizer, front?
- The hardware and components featured in the Stabilizer, front are specific to the 3 Series G20 Sedan LCI 330d produced during 2024. These technical specifications ensure that parts like the Stabilizer front with rubber mounting (31306853612) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front assembly?
- Each item in the Stabilizer, front corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330d, you can identify the Stabilizer front with rubber mounting by locating its position on the schematic, which then links to the official BMW part number 31306853612 for the Front Axle section.
