Frnt axle support,wishbone/tension strut for BMW 7 Series G70 M760eX (2025)

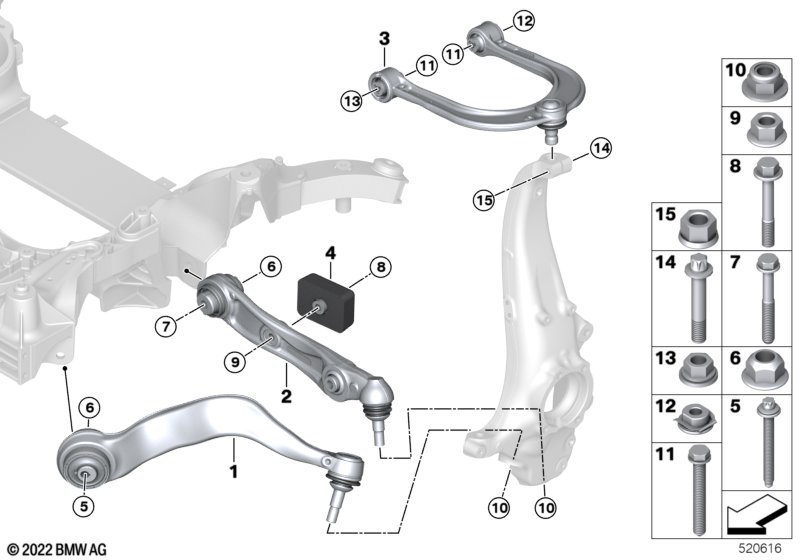

This Frnt axle support,wishbone/tension strut technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tension strut with hydraulic mount, left | 1 | 31108869745 | Shop at ECS Tuning | ||||||
| 01 | Tension strut with hydraulic mount,right | 1 | 31108869746 | Shop at ECS Tuning | ||||||
| 02 | Wishbone, bottom, with rubber mount left | 1 | 31106898553 | Shop at ECS Tuning | ||||||
| 02 | Wishbone, bottom,with rubber mount right | 1 | 31106898554 | Shop at ECS Tuning | ||||||
| 03 | Control arm with rubber mount top | 2 | 31108833030 | Shop at ECS Tuning | ||||||
| 03 | Camber correction wishbone top | PLUS | 2 | 31108834539 | Shop at ECS Tuning | |||||
| 03 | Camber correction wishbone top | MINUS | 2 | 31108834540 | Shop at ECS Tuning | |||||
| 05 | ASA bolt with washer | M14X127-10.9 | 2 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M14X1,5-10 ZNS3 | 4 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M14X1,5X110 | 2 | 33176760342 | $3.50 | Shop at ECS Tuning | ||||
| 10 | Hexagon nut with collar | M16X1.5 ZNNIV | 4 | 07146875114 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M10X85-U1-10.9 | 4 | 07119908592 | Shop at ECS Tuning | |||||
| 12 | Clip nut | M10-10 ZNS3 | 2 | 31106866023 | Shop at ECS Tuning | |||||
| 13 | Combination nut | M10-10 ZNS3 | 2 | 33306760585 | Shop at ECS Tuning | |||||
| 14 | Torx screw | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| 15 | Combination nut | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning |
