Front axle support for BMW 3 Series G28 Sedan LCI 330Li (2025)

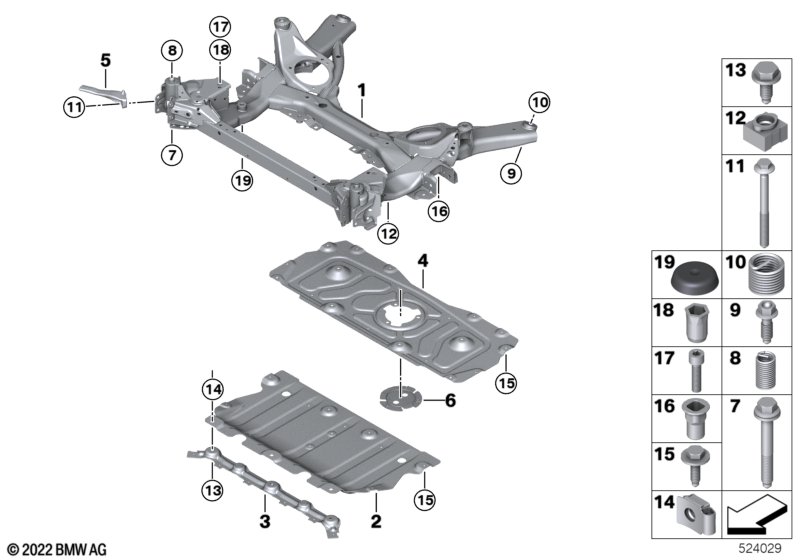

This Front axle support technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 330Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | RWD | 1 | 31106877320 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 02 | Skid plate steering | 1 | 31146880899 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 02 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 03 | Holder for engine guard front | 1 | 31146884361 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 03 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 04 | Skid plate oil pan front | 1 | 31146880900 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 04 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 05 | Crash lever, left | 1 | 31126876991 | Shop at ECS Tuning | ||||||
| 05 | Crash lever, right | 1 | 31126876992 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 06 | Cover, structural reinforcement panel | AWD | 1 | 31116865263 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 06 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 07 | Multi-purpose bolt ASA | M12X1,5X90 | 4 | 07146885922 | Shop at ECS Tuning | |||||
| 08 | Heli-Coil threaded insert | M12X1,5X30 | 4 | 33306780501 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M14X42X1,5 | 2 | 07146886209 | Shop at ECS Tuning | |||||
| 10 | Helicoil thread insert | M14X1.5X14 | 2 | 33326869611 | Shop at ECS Tuning | |||||
| 11 | Hexagon screw with flange | M12X136,10.9 | 4 | 31106885777 | Shop at ECS Tuning | |||||
| 12 | Square nut | M12X1.5-10 ZNS | 4 | 31106867397 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 13 | Multi-purpose bolt ASA | M10X25 ZNS3 | 3 | 07146885805 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 13 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 14 | Clip nut | M10-10 ZNS3 | 3 | 07146887266 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 14 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 15 | Hex bolt | M6X20-8.8 | 6 | 07119907898 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 15 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 16 | Blind rivet nut, flat headed | M6 | 12 | 07147311614 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 16 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 17 | ISA screw | M8X30-8.8-ZNS3 | 1 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 19 | Blind plug | D=12MM | 4 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
