Carrier / wheel bearing, front for BMW XM G09 XM (2025)

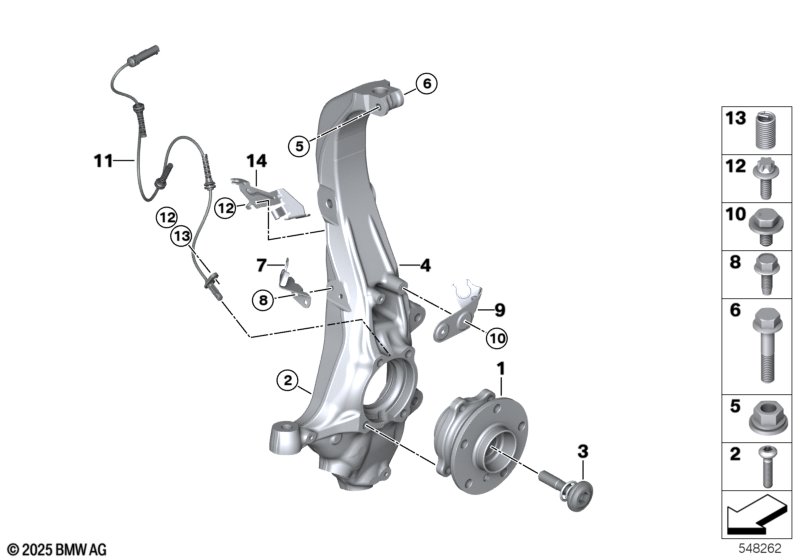

This Carrier / wheel bearing, front technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub with bearing front | 2 | 31201543561 | Shop at ECS Tuning | ||||||
| 02 | Round collar screw | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| 03 | Collar screw with spring | M16X1,5X72-8.8 | 2 | 31206795249 | $6.87 | Shop at ECS Tuning | ||||
| 04 | Carrier, left | 1 | 31216876655 | Shop at ECS Tuning | ||||||
| 04 | Carrier, right | 1 | 31216876656 | Shop at ECS Tuning | ||||||
| 05 | Combination nut | M10-10 ZNS3 | 2 | 33306760585 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M10X60-10.9 | 2 | 07119905862 | $1.80 | Shop at ECS Tuning | ||||
| 07 | Holder, brake hose, left | 1 | 34306876373 | Shop at ECS Tuning | ||||||
| 07 | Holder, brake hose, right | 1 | 34306876374 | Shop at ECS Tuning | ||||||
| 08 | Screw self-tapping | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Bracket, brake hose, outer left | 1 | 34306876371 | Shop at ECS Tuning | ||||||
| 09 | Bracket, brake hose, outer right | 1 | 34306876372 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | M6X12-10.9-MK- | 4 | 34116868785 | Shop at ECS Tuning | |||||
| 11 | Wheelspeed sensor | 2 | 34526895655 | Shop at ECS Tuning | ||||||
| 12 | ASA screw, self-threading | M6X16 | 4 | 34509804151 | Shop at ECS Tuning | |||||
| 13 | Heli-Coil threaded insert | M6X12 | 1 | 33306786621 | Shop at ECS Tuning | |||||
| 14 | Holder acceleration sensor left front | 1 | 37148847995 | Shop at ECS Tuning | ||||||
| 14 | Holder acceleration sensor right front | 1 | 37148847996 | Shop at ECS Tuning |
