Spring strut front VDM/mounted parts AWD for BMW XM G09 XM (2025)

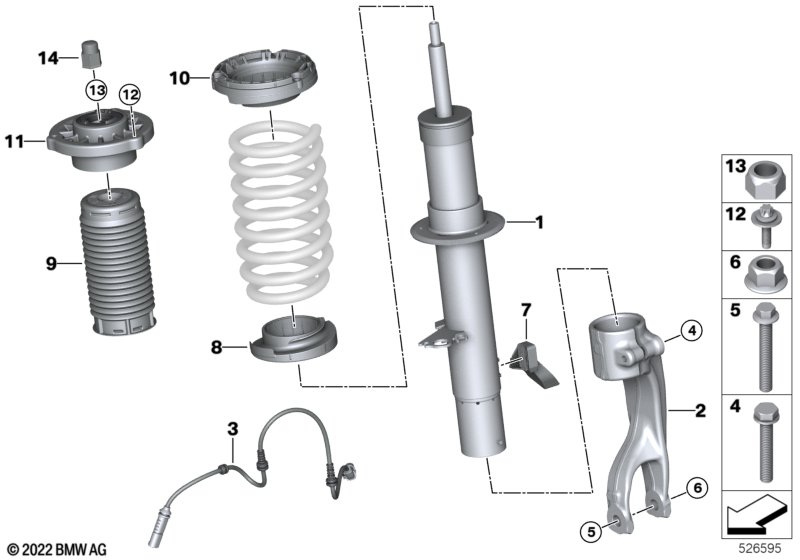

This Spring strut front VDM/mounted parts AWD technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring strut front left VDC | 1 | 37105A3AE91 | Shop at ECS Tuning | ||||||
| 01 | Spring strut front right VDC | 1 | 37105A3AE92 | Shop at ECS Tuning | ||||||
| 02 | Spring strut holder left | 1 | 31121543981 | Shop at ECS Tuning | ||||||
| 02 | Spring strut holder right | 1 | 31121543982 | Shop at ECS Tuning | ||||||
| 03 | Adapt.cable variable damp.contr.fr.left | 1 | 37106887537 | Shop at ECS Tuning | ||||||
| 03 | Adapt.cable variable damp.contr.fr.right | 1 | 37106887538 | Shop at ECS Tuning | ||||||
| 04 | Hex screw with collar | M10X60 | 2 | 07119904161 | Shop at ECS Tuning | |||||
| 05 | Hexagon collar screw | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
| 06 | Combination nut | 14X1,5 ZNNIV | 2 | 07148835360 | Shop at ECS Tuning | |||||
| 07 | Bracket, wheelspeed sensor, left | 1 | 34526883125 | Shop at ECS Tuning | ||||||
| 07 | Bracket, wheelspeed sensor, right | 1 | 34526883126 | Shop at ECS Tuning | ||||||
| 08 | Spring pad lower | 2 | 33536866784 | Shop at ECS Tuning | ||||||
| 09 | Auxiliary damper with protective tube | 2 | 31305A92849 | Shop at ECS Tuning | ||||||
| 10 | Spring pad upper | 2 | 31306862569 | Shop at ECS Tuning | ||||||
| 11 | Guide support | 2 | 31308092142 | Shop at ECS Tuning | ||||||
| 12 | Hex screw with collar | M8X30-10.9 ZNS3 | 6 | 31306893691 | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 14 | Protection cap | 2 | 31306851244 | Shop at ECS Tuning |
