Output shaft front left / all-wheel for BMW XM G09 XM (2025)

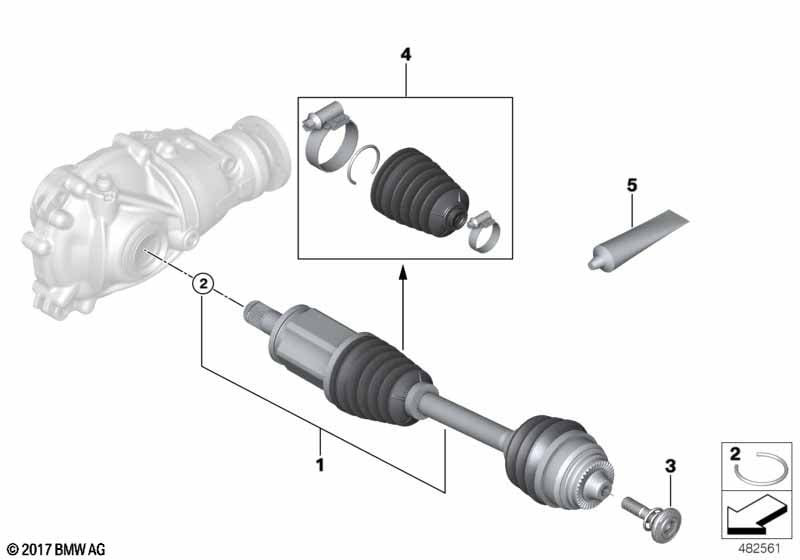

This Output shaft front left / all-wheel technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft left | 1 | 31605A2E805 | Shop at ECS Tuning | ||||||
| 02 | Lock Ring | D=22,4 | 1 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Collar screw with spring | M16X1,5X72-8.8 | 1 | 31206795249 | $6.87 | Shop at ECS Tuning | ||||
| 04 | Repair kit bellows, interior | 1 | 31608680223 | Shop at ECS Tuning | ||||||
| 05 | Lubricating grease Renolit CX-TP 1 | 100G | X | 83192286018 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Output shaft front left / all-wheel?
- This technical diagram illustrates the Output shaft front left / all-wheel within the Front Axle group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Output shaft left (Part #31605A2E805).
- Which models use the hardware listed in this Output shaft front left / all-wheel?
- The hardware and components featured in the Output shaft front left / all-wheel are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Output shaft left (31605A2E805) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Output shaft front left / all-wheel assembly?
- Each item in the Output shaft front left / all-wheel corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Output shaft left by locating its position on the schematic, which then links to the official BMW part number 31605A2E805 for the Front Axle section.
