Front subframe, skid plate for BMW 5 Series G61 Touring 530e (2025)
This Front subframe, skid plate technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31106897195 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 03 | Structural reinforcement panel | 1 | 31108832718 | Shop at ECS Tuning | ||||||
| 05 | Heat resistant plate | 1 | 31148832862 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 07 | Multi-purpose bolt | M14X1.5X61-14.9 | 2 | 07148837466 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 09 | Multi-purpose bolt | 10X45 ZNS3 | 10 | 31116899302 | Shop at ECS Tuning | |||||
| 10 | Plug-in nut | M10-10 ZNS3 | 6 | 07147283812 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 10 | Plug-in nut | M10-10 ZNS3 | 8 | 07147283812 | Shop at ECS Tuning | |||||
| 11 | Blind rivet nut, flat headed | M10 | 2 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| 16 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 18 | Protection foil | 4 | 07147210555 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 530e Front subframe, skid plate?

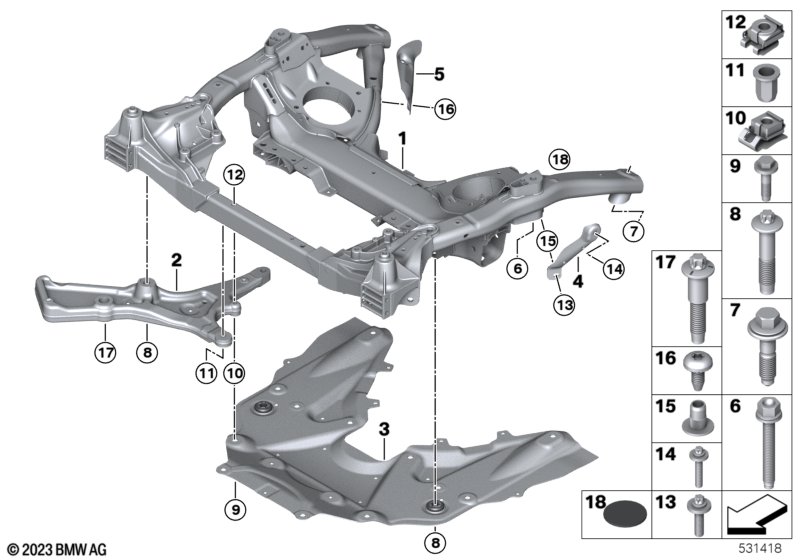

- This technical diagram illustrates the Front subframe, skid plate within the Front Axle group for the 5 Series G61 Touring 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Front axle support (Part #31106897195).
