Front axle support, 4-wheel for BMW 5 Series G60 Sedan 540dX (2025)

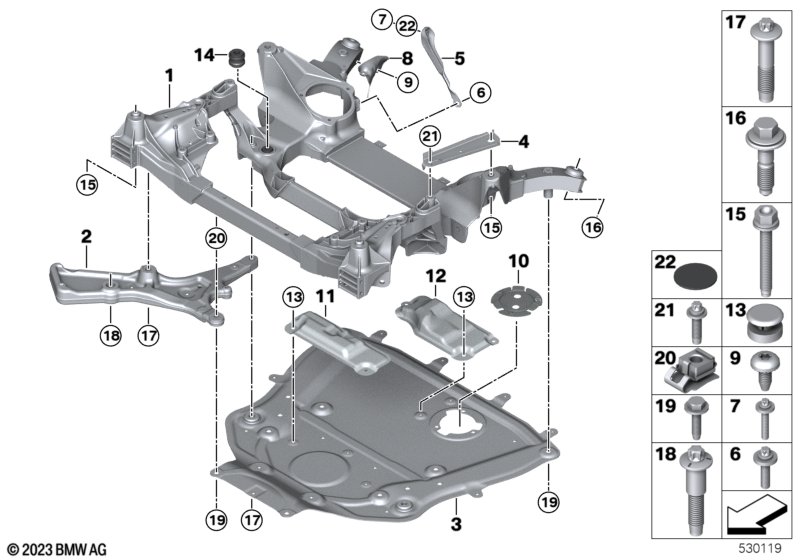

This Front axle support, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front subframe | 1 | 31106898628 | Shop at ECS Tuning | ||||||
| 02 | Slip wedge, left | 1 | 31106898521 | Shop at ECS Tuning | ||||||
| 02 | Slip wedge, right | 1 | 31106898522 | Shop at ECS Tuning | ||||||
| 03 | Stiffening panel | 1 | 31106898652 | Shop at ECS Tuning | ||||||
| 04 | Rod | 2 | 31106898525 | Shop at ECS Tuning | ||||||
| 05 | Brace, engine mount, right | 1 | 31106861198 | Shop at ECS Tuning | ||||||
| 06 | Torx-bolt with washer | M8X34 | 1 | 31106866494 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | M8X45-10.9 | 1 | 31106866496 | Shop at ECS Tuning | |||||
| 10 | Cover, structural reinforcement panel | AWD | 1 | 31116865263 | Shop at ECS Tuning | |||||
| 11 | Sound insulation stiffening panel front | 1 | 31118831818 | Shop at ECS Tuning | ||||||
| 12 | Sound insulation stiffening panel rear | 1 | 31118831819 | Shop at ECS Tuning | ||||||
| 13 | Blind rivet | 6 | 07147234212 | Shop at ECS Tuning | ||||||
| 14 | Steering gear bearing Al | 2 | 31107915375 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt with washer | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 16 | Multi-purpose bolt | M14X1.5X61-14.9 | 2 | 07148837466 | Shop at ECS Tuning | |||||
| 17 | ASA-Bolt | M14X1,5X70 ZNS3 | 4 | 07148837399 | Shop at ECS Tuning | |||||
| 19 | Multi-purpose bolt | 10X45 ZNS3 | 12 | 31116899302 | Shop at ECS Tuning | |||||
| 20 | Plug-in nut | M10-10 ZNS3 | 2 | 07147283812 | Shop at ECS Tuning | |||||
| 21 | ASA-Bolt | M12X45-10.9 | 2 | 07146888411 | Shop at ECS Tuning | |||||
| 22 | Protection foil | 2 | 07147210555 | Shop at ECS Tuning |
