Stabilizer, front for BMW 5 Series G60 Sedan 523d (2025)

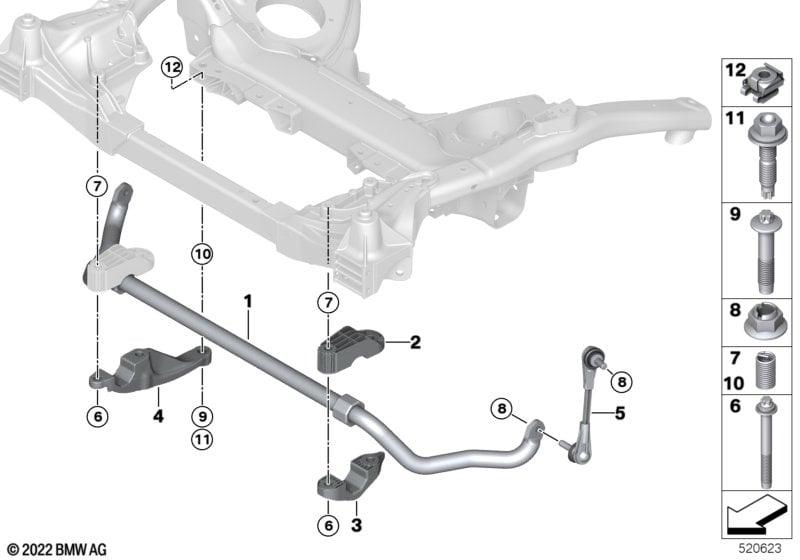

This Stabilizer, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 523d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Anti-roll bar front axle | 1 | 31356898745 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 1 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=No |
|||||||||
| 01 | Anti-roll bar front axle | 1 | 31356898743 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 1 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 02 | Bracket, stabilizer bar, upper section | 2 | 31356898105 | Shop at ECS Tuning | ||||||
| 04 | Bracket, stabilizer bar, lower section | 2 | 31356898107 | Shop at ECS Tuning | ||||||
| 05 | Stabilizer link | 2 | 31356896815 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Torx-bolt with washer | M12GFX105 10.9 | 4 | 07129908624 | Shop at ECS Tuning | |||||
| 07 | Heli-Coil threaded insert | M12X30-A2 | 4 | 31106868499 | Shop at ECS Tuning | |||||
| 08 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 4 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 09 | ASA-Bolt | M14X1,5X70 ZNS3 | 2 | 07148837399 | Shop at ECS Tuning | |||||
| 10 | Wire threaded insert | M14X1,5X21 | 2 | 31106865151 | Shop at ECS Tuning | |||||
| For vehicles with Skid plate national versions |
S8SDA=No |
|||||||||
| 11 | Hex bolt with washer | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 12 | Cage nut | M14X1,5 ZNS3 | 2 | 07148838235 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
