Front differential 170AL for BMW 5 Series G60 Sedan 540dX (2025)

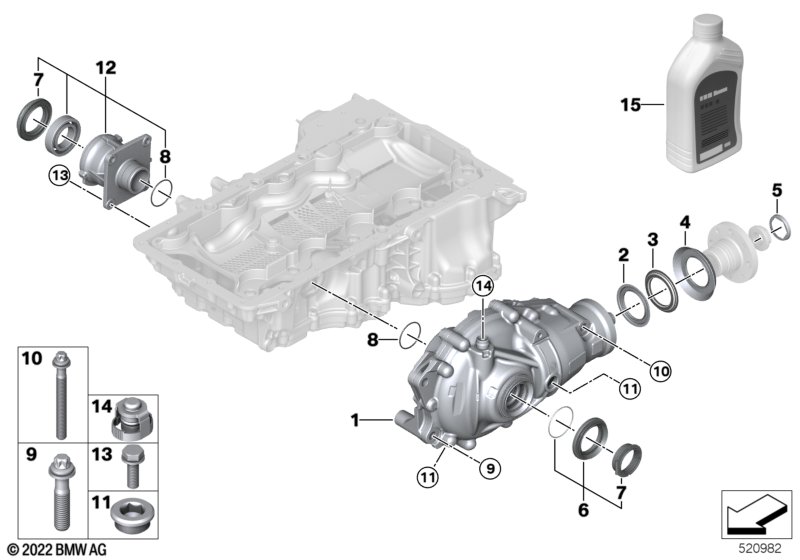

This Front differential 170AL technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle differential 170AL | I=2,56 | 1 | 31508854701 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 44X69X10/15 | 1 | 31527507697 | $8.59 | Shop at ECS Tuning | ||||
| 03 | Dust plate inner | 1 | 31528847176 | Shop at ECS Tuning | ||||||
| 04 | Dust plate outer | 1 | 31518847177 | Shop at ECS Tuning | ||||||
| 05 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 06 | Repair kit output radial shaft seal | 44X67 | 1 | 31508860349 | Shop at ECS Tuning | |||||
| 07 | Assembly ring | 1 | 31537502681 | $9.98 | Shop at ECS Tuning | |||||
| 08 | O-ring | D=39MM | 2 | 31511213527 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Screw, outside Torx with washer | M12X1,5X55-10.9 | 3 | 31517589001 | $2.27 | Shop at ECS Tuning | ||||
| 10 | Screw, outside Torx with washer | M12X1,5X105 | 1 | 31517589002 | $2.47 | Shop at ECS Tuning | ||||
| 11 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 12 | Bearing bracket | 1 | 31508839266 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt with washer | M8X25 ZNS3 | 4 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Breather pipe | 1 | 33108842550 | Shop at ECS Tuning | ||||||
| 15 | Hypoid axle oil G5 | 0,5L | X | 83222471487 | Shop at ECS Tuning |
