Stabilizer, front, AWD for BMW 5 Series G60 Sedan 530iX (2025)

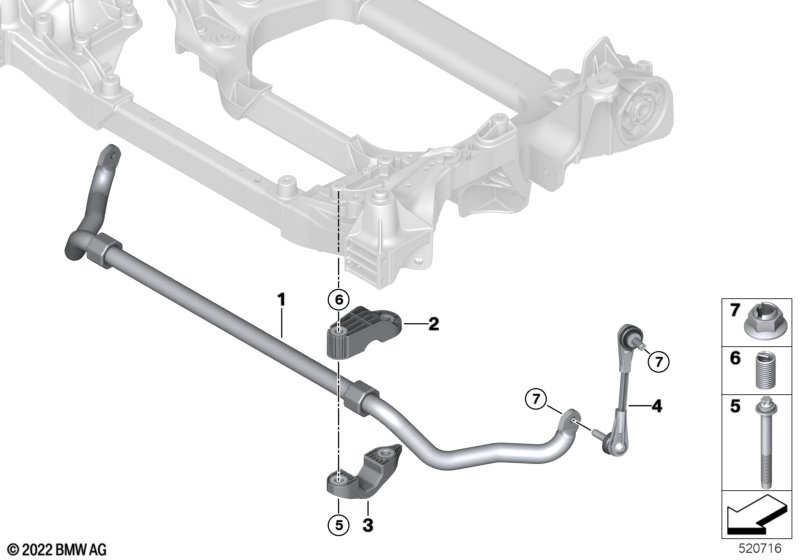

This Stabilizer, front, AWD technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Executive Drive Pro |
S2VSA=No |
||||||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Anti-roll bar front axle | 1 | 31356898745 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 1 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=No |
|||||||||
| 01 | Anti-roll bar front axle | 1 | 31356898743 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 1 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 02 | Bracket, stabilizer bar, upper section | 2 | 31356898105 | Shop at ECS Tuning | ||||||
| 03 | Holder anti-roll bar lower section | 2 | 31356898106 | Shop at ECS Tuning | ||||||
| 04 | Stabilizer link | 2 | 31356896815 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex nut wiht flange | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | M12GFX105 10.9 | 4 | 07129908624 | Shop at ECS Tuning | |||||
| 06 | Heli-Coil threaded insert | M12X30-A2 | 4 | 31106868499 | Shop at ECS Tuning | |||||
| 07 | Hex nut wiht flange | M12X1,5-10-ZNS3 | 4 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530iX Stabilizer, front, AWD?
- This technical diagram illustrates the Stabilizer, front, AWD within the Front Axle group for the 5 Series G60 Sedan 530iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Anti-roll bar front axle (Part #31356898745).
- Which models use the hardware listed in this Stabilizer, front, AWD?
- The hardware and components featured in the Stabilizer, front, AWD are specific to the 5 Series G60 Sedan 530iX produced during 2025. These technical specifications ensure that parts like the Anti-roll bar front axle (31356898745) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizer, front, AWD assembly?
- Each item in the Stabilizer, front, AWD corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530iX, you can identify the Anti-roll bar front axle by locating its position on the schematic, which then links to the official BMW part number 31356898745 for the Front Axle section.
