Front axle wishbone / tension strut AWD for BMW 5 Series G90 M5 M5 (2025)

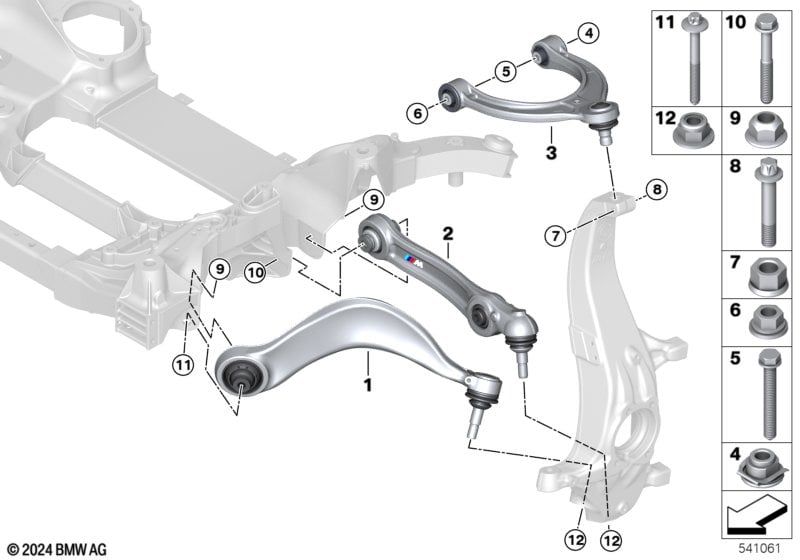

This Front axle wishbone / tension strut AWD technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pull rod left | 1 | 31107885659 | Shop at ECS Tuning | ||||||
| 01 | Pull rod right | 1 | 31107885660 | Shop at ECS Tuning | ||||||
| 02 | Wishbone, bottom, with rubber mount left | 1 | 31107885655 | Shop at ECS Tuning | ||||||
| 02 | Control arm with rubber bushing, right | 1 | 31107885656 | Shop at ECS Tuning | ||||||
| In the case of a repair, if camber correction cannot be accomplished any other way, it is done via top wishbone. |
||||||||||
| 03 | Control arm, camber setting, upper left | MINUS | 1 | 31107885665 | Shop at ECS Tuning | |||||
| Camber correction, negative | ||||||||||
| 03 | Control arm, camber setting, upper right | MINUS | 1 | 31107885666 | Shop at ECS Tuning | |||||
| Camber correction, negative | ||||||||||
| 03 | Control arm, camber setting, upper left | PLUS | 1 | 31107885667 | Shop at ECS Tuning | |||||
| Camber correction, positive | ||||||||||
| 03 | Control arm, camber setting, upper right | PLUS | 1 | 31107885668 | Shop at ECS Tuning | |||||
| Camber correction, positive | ||||||||||
| Standard | ||||||||||
| 03 | Wishbone, upper left | 1 | 31107885663 | Shop at ECS Tuning | ||||||
| 03 | Wishbone, upper right | 1 | 31107885664 | Shop at ECS Tuning | ||||||
| 04 | Clip nut | M10-10 ZNS3 | 2 | 31106866023 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M10X85-U1-10.9 | 4 | 07119908592 | Shop at ECS Tuning | |||||
| 06 | Combination nut | M10-10 ZNS3 | 2 | 33306760585 | Shop at ECS Tuning | |||||
| 07 | Combination nut | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Torx screw | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M14X1,5-10 ZNS3 | 4 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M14X1,5X110 | 2 | 33176760342 | $3.50 | Shop at ECS Tuning | ||||
| 11 | ASA bolt with washer | M14X127-10.9 | 2 | 33316767586 | $6.31 | Shop at ECS Tuning | ||||
| 12 | Hexagon nut with collar | M16X1.5 ZNNIV | 4 | 07146875114 | Shop at ECS Tuning | |||||
