Steering box single components for BMW 3 Series E21 318i (1982)

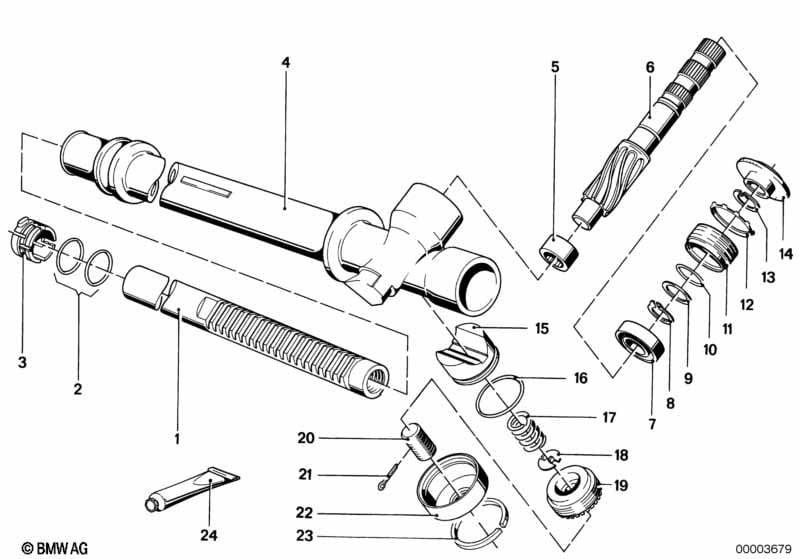

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering rack | 1 | 32111116908 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket ring | 4 | 32111116911 | $2.44 | Shop at ECS Tuning | |||||
| 03 | Guide bush | 2 | 32111116910 | $3.56 | Shop at ECS Tuning | |||||
| 04 | Housing | 1 | 32111116906 | $214.04 | ENDED | Shop at ECS Tuning | ||||
| 05 | Needle cage | 12,0X18,0X12,0 | 1 | 32111116921 | $8.48 | ENDED | Shop at ECS Tuning | |||
| 06 | Pinion | 1 | 32111120140 | $132.50 | ENDED | Shop at ECS Tuning | ||||
| 07 | Ball bearing | 17,7X35,0X8,0 | 1 | 32111116918 | $23.32 | ENDED | Shop at ECS Tuning | |||
| 08 | Snap ring | 1 | 32311113566 | $0.37 | Shop at ECS Tuning | |||||
| 09 | Shim | 1 | 32111116922 | $0.31 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | 18X3,25MM | 1 | 32111116923 | $1.71 | ENDED | Shop at ECS Tuning | |||
| 11 | Adjuster | 1 | 32111116924 | ENDED | Shop at ECS Tuning | |||||
| 12 | Toothed ring | 1 | 32111116925 | $0.63 | Shop at ECS Tuning | |||||
| 13 | Lock Ring | 1 | 32111116927 | $1.08 | Shop at ECS Tuning | |||||
| 14 | Kit dust cap | 1 | 32111116926 | $22.06 | ENDED | Shop at ECS Tuning | ||||
| 15 | Thrust adapter | 1 | 32111116913 | $14.24 | ENDED | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 1 | 32111116914 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 17 | Compression spring | 1 | 32111116912 | Shop at ECS Tuning | ||||||
| 18 | Spring pocket | 1 | 32111116915 | $0.63 | Shop at ECS Tuning | |||||
| 19 | Adjuster | 1 | 32111116916 | $9.49 | Shop at ECS Tuning | |||||
| 20 | Adjuster | 1 | 32111116928 | $4.52 | Shop at ECS Tuning | |||||
| 21 | Split pin | 2X12 | 1 | 07119945092 | ENDED | Shop at ECS Tuning | ||||
| 22 | Kit dust cap | 1 | 32111116917 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 24 | Grease FB-1 | 100G | X | 83238849305 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
