Steering box single components for BMW 5 Series E12 520i (1978)

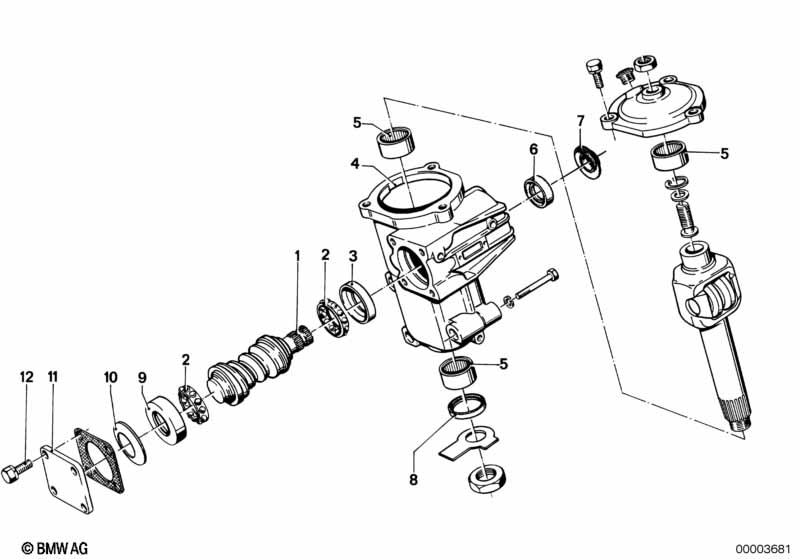

This Steering box single components technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Worm gear | 1 | 32111104722 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bearing ball cage | 2 | 32112670135 | $52.35 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bearing ball ring,upper | 1 | 32111110267 | ENDED | Shop at ECS Tuning | |||||
| 04 | Housing steering box | 1 | 32111116769 | ENDED | Shop at ECS Tuning | |||||
| 05 | Needle sleeve | 3 | 32111114272 | $23.99 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 32111110269 | $19.71 | Shop at ECS Tuning | |||||
| 07 | Kit dust cap | 1 | 32111120179 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shaft seal | 1 | 32111104719 | $20.44 | Shop at ECS Tuning | |||||
| 09 | Bearing ball ring,lower | 1 | 32111110268 | $25.89 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | 1 | 32111114287 | ENDED | Shop at ECS Tuning | |||||
| 11 | Flange | 1 | 32111108861 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X30-Z3 | 4 | 07119915085 | $0.62 | Shop at ECS Tuning |
