Mechanical steering for BMW 3 Series E21 320 (1977)

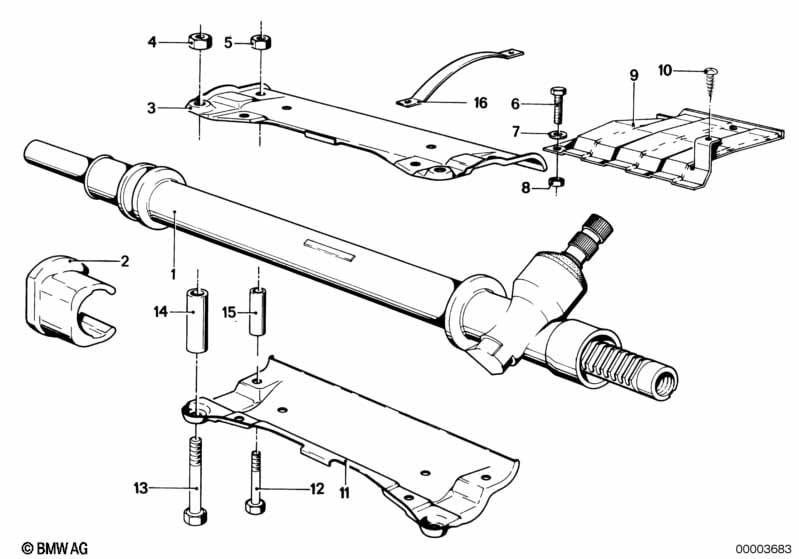

This Mechanical steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. steering box | 1 | 32111116905 | ENDED | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 32111120433 | $30.33 | Shop at ECS Tuning | |||||
| 03 | Bearing shell | 1 | 32111114804 | $9.63 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 11 | Bearing shell | 1 | 32111114804 | $9.63 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M10X70 | 2 | 31111136250 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 14 | Bush | 2 | 32111114807 | $4.64 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bush | 2 | 32111114809 | $1.89 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Mechanical steering?
- This technical diagram illustrates the Mechanical steering within the Steering group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Exch. steering box (Part #32111116905).
- Which models use the hardware listed in this Mechanical steering?
- The hardware and components featured in the Mechanical steering are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Exch. steering box (32111116905) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanical steering assembly?
- Each item in the Mechanical steering corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Exch. steering box by locating its position on the schematic, which then links to the official BMW part number 32111116905 for the Steering section.
