Mechanical steering for BMW 3 Series E30 325e (1987)

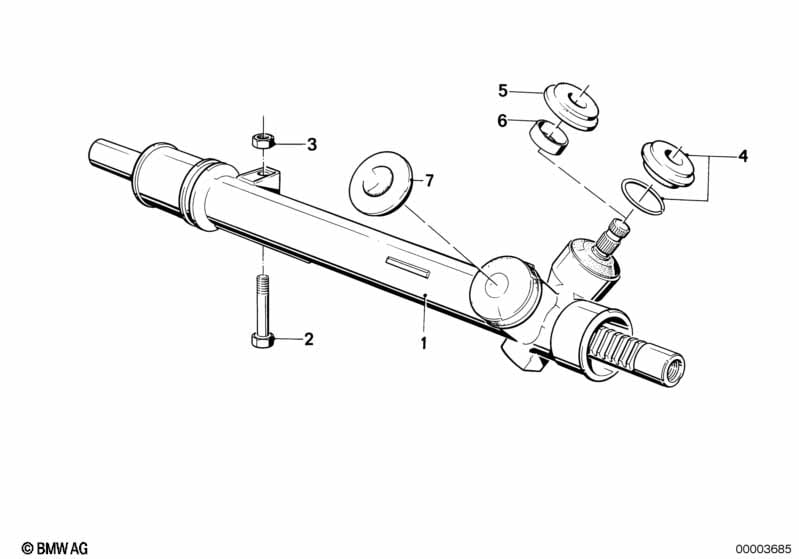

This Mechanical steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Exch. steering box | 1 | 32111130169 | $574.41 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hexagon screw with flange | M10X82 | 2 | 07119915750 | $2.67 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex nut wiht flange | M10-10 ZNS | 2 | 31351095452 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 05 | Kit dust cap | 1 | 09/1985 | 32111130828 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 09/1985 | 32131130827 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
