Mechanical steering for BMW 3 Series E30 320i (1991)

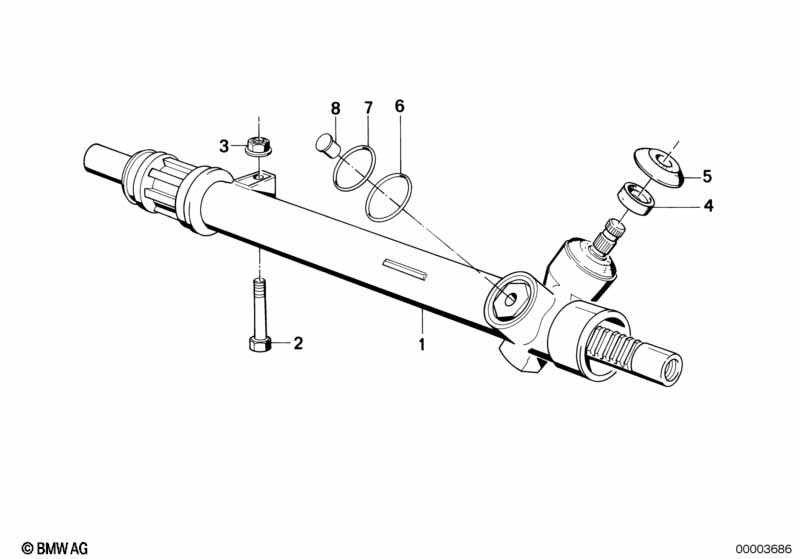

This Mechanical steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering gear | 1 | 09/1987 | 32111130170 | $574.41 | ENDED | Shop at ECS Tuning | |||
| 02 | Hexagon screw with flange | M10X82 | 2 | 09/1987 | 07119915750 | $2.67 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex nut wiht flange | M10-10 ZNS | 2 | 09/1987 | 31351095452 | $0.57 | ENDED | Shop at ECS Tuning | ||
| 04 | Shaft seal | 1 | 09/1987 | 32131130827 | ENDED | Shop at ECS Tuning | ||||
| 05 | Kit dust cap | 1 | 09/1987 | 32111130828 | ENDED | Shop at ECS Tuning | ||||
| 06 | O-ring | 34X3MM | 1 | 09/1987 | 32111130826 | Shop at ECS Tuning | ||||
| 07 | O-ring | 27X4MM | 1 | 09/1987 | 32111130825 | Shop at ECS Tuning | ||||
| 08 | Plug | 1 | 09/1987 | 32111131630 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Mechanical steering?
- This technical diagram illustrates the Mechanical steering within the Steering group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Steering gear (Part #32111130170).
- Which models use the hardware listed in this Mechanical steering?
- The hardware and components featured in the Mechanical steering are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Steering gear (32111130170) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanical steering assembly?
- Each item in the Mechanical steering corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Steering gear by locating its position on the schematic, which then links to the official BMW part number 32111130170 for the Steering section.
