Hydro steering-tandem vane pump for BMW 5 Series E34 520i (1996)

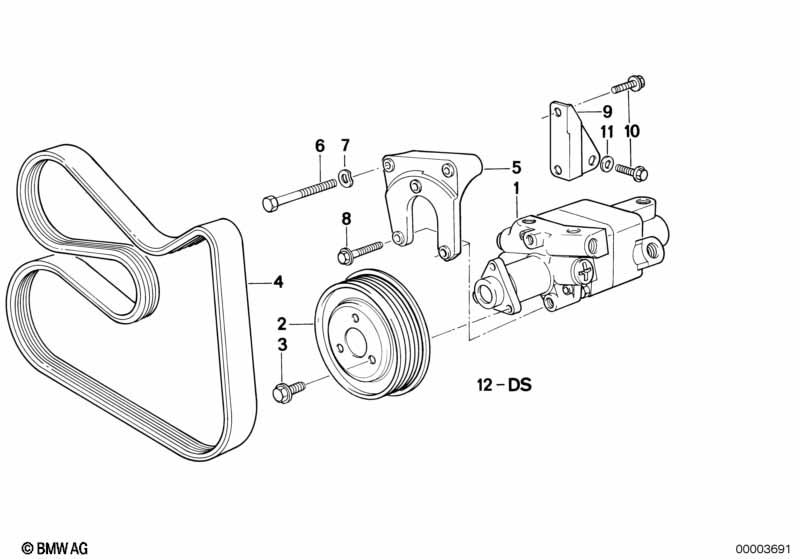

This Hydro steering-tandem vane pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO LEVELLING SYSTEM | |||||||||
| 01 | Tandem vane pump | ZF | 1 | 32411141283 | $668.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Pulley | 1 | 32421722556 | $63.50 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Supporting plate | 1 | 32421720744 | $29.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X85-8.8 | 2 | 07119908003 | Shop at ECS Tuning | |||||
| 07 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X30-Z3 | 3 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Bracket | 1 | 32421726314 | $12.98 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X14-8.8-ZNS3 | 2 | 07119902922 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Gasket set tandem vane pump | ZF | 1 | 32411134836 | $41.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
