Hydro steering-pipe steering box for BMW 3 Series E30 325e (1987)

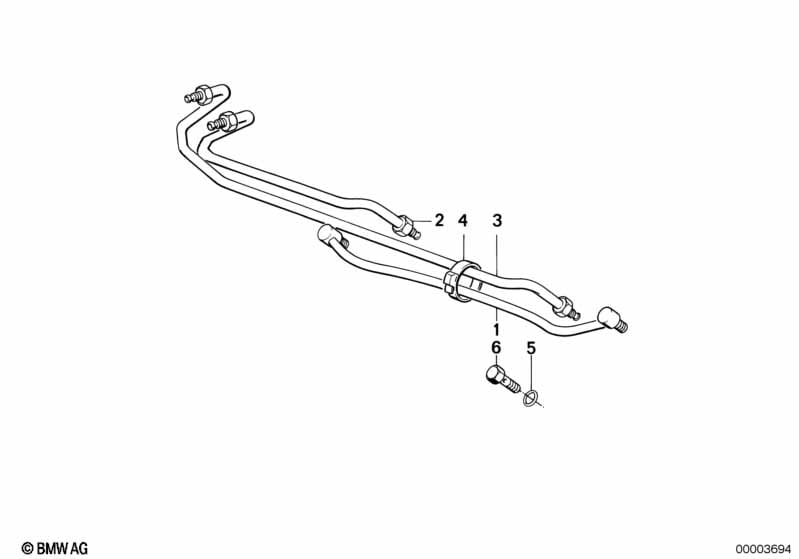

This Hydro steering-pipe steering box technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Pipe | 1 | 11/1986 | 32131132816 | $9.80 | Shop at ECS Tuning | ||||
| 02 | Pipe | 1 | 11/1986 | 32131132817 | $26.72 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Airbag |
L807A=Yes =Yes |
|||||||||
| 02 | Pipe | 1 | 11/1986 | 32131132819 | $26.72 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Pipe | 1 | 11/1986 | 32131132818 | $33.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Airbag |
L807A=Yes =Yes |
|||||||||
| 03 | Pipe | FÜR AIRBAG | 1 | 11/1986 | 32131132820 | $33.85 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Clamp | 1 | 11/1986 | 32131123740 | $4.07 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
