Hydro steering-vane pump/single parts for BMW 6 Series E24 633CSi (1979)

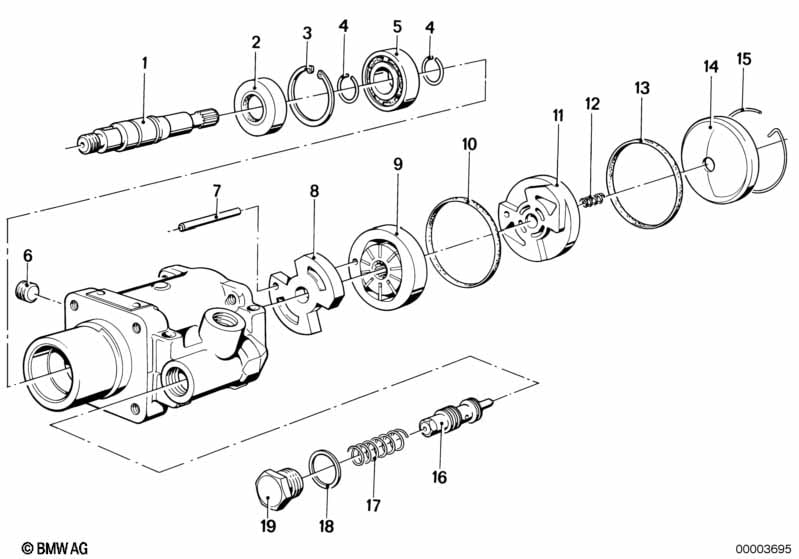

This Hydro steering-vane pump/single parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr.7672 955 210 = 32 41 1 114 480 | |||||||||
| 01 | Drive Shaft | 1 | 32411117619 | $51.89 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shaft seal | 1 | 32411117621 | $7.80 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 42X1,75 | 1 | 07119905077 | $4.78 | Shop at ECS Tuning | ||||

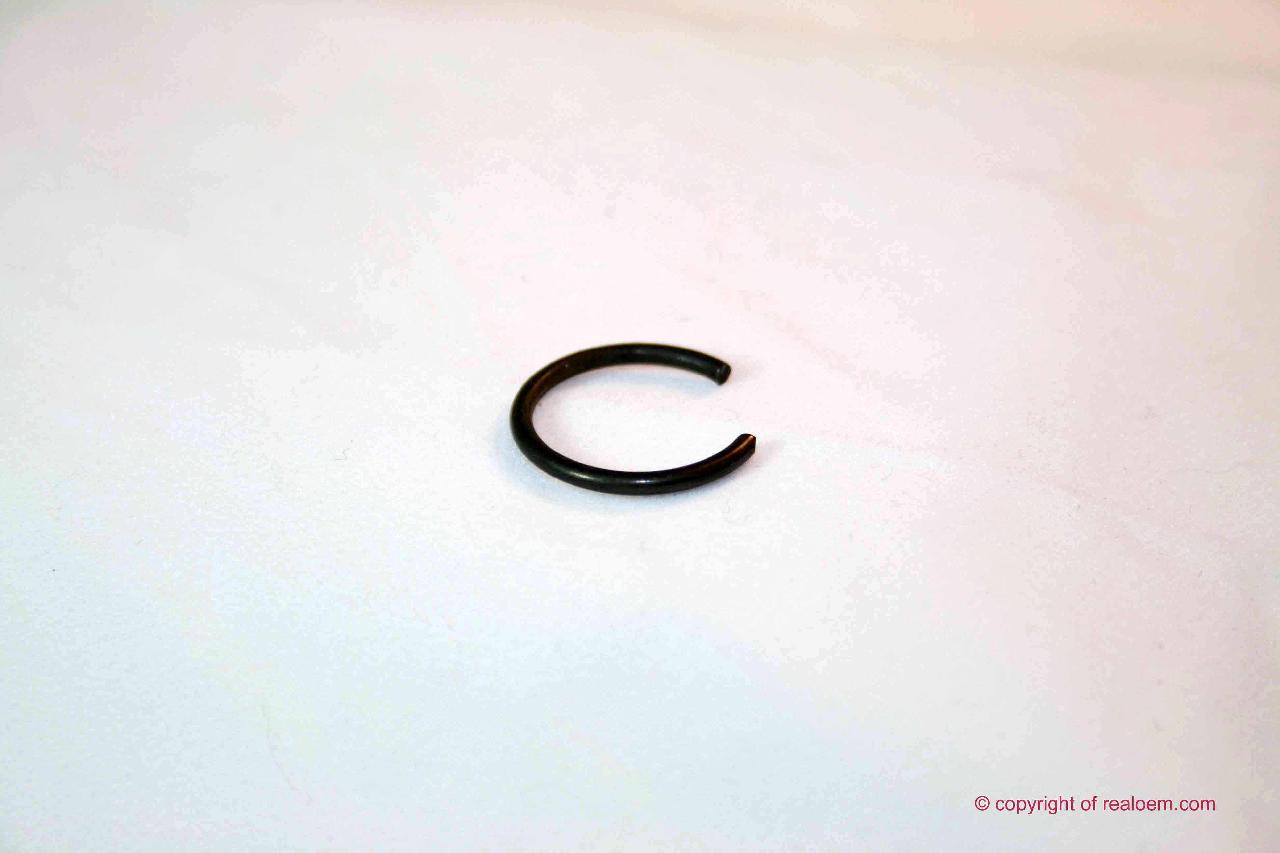

| 04 | Snap ring | 20 | 1 | 07119933441 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Ball bearing | 20,0X42,0X12,0 | 1 | 32411117620 | $36.95 | ENDED | Shop at ECS Tuning | |||
| 06 | Screw plug | 2 | 32411105148 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 32411117624 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plate,input side | 1 | 32411117626 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rotor set | 1 | 32411117616 | $191.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | O-ring | 1 | 32411105154 | $4.76 | Shop at ECS Tuning | |||||
| 11 | Plate, cover side | 1 | 32411117627 | ENDED | Shop at ECS Tuning | |||||
| 12 | Compression spring | 1 | 32411117629 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 13 | O-ring | 1 | 32411105157 | $4.76 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cover | 1 | 32411117628 | $18.76 | ENDED | Shop at ECS Tuning | ||||
| 15 | Lock Ring | 1 | 32411105159 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 16 | Valve piston tolerance size 1 | 1 | 32411117617 | $31.26 | ENDED | Shop at ECS Tuning | ||||
| 16 | Valve piston tolerance size 2 | 1 | 32411117618 | $35.81 | ENDED | Shop at ECS Tuning | ||||
| 17 | Compression spring | 1 | 32411105143 | $7.70 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A22X27-CU | 1 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Screw plug | 1 | 32411105160 | $3.77 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Hydro steering-vane pump/single parts?
- This technical diagram illustrates the Hydro steering-vane pump/single parts within the Steering group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Drive Shaft (Part #32411117619).
- Which models use the hardware listed in this Hydro steering-vane pump/single parts?
- The hardware and components featured in the Hydro steering-vane pump/single parts are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Drive Shaft (32411117619) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump/single parts assembly?
- Each item in the Hydro steering-vane pump/single parts corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Drive Shaft by locating its position on the schematic, which then links to the official BMW part number 32411117619 for the Steering section.
