Oil carrier / Single parts for BMW 3 Series E21 320i (1977)

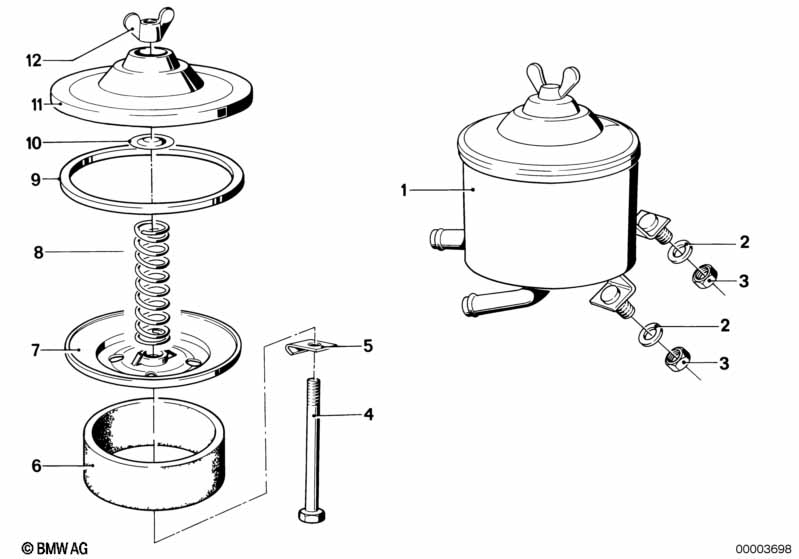

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | 1 | 32411120081 | $146.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X110 | 1 | 07119912378 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 05 | Clip | 1 | 32411105162 | $0.43 | Shop at ECS Tuning | |||||
| 06 | Oil filter | 1 | 32411104357 | $33.80 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 32411105163 | ENDED | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 32411105164 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket ring | 1 | 32411105165 | $29.83 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Cover | X | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| 09 | Gasket | 1 | 32411128929 | $5.07 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Cover | X | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| 10 | Positioning plate | 1 | 32411121873 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 32411128929 | $5.07 | Shop at ECS Tuning | |||||
| 12 | Ring nut | 1 | 61211233457 | $0.88 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
