Hydro steering-oil pipes for BMW 3 Series E21 323i (1982)

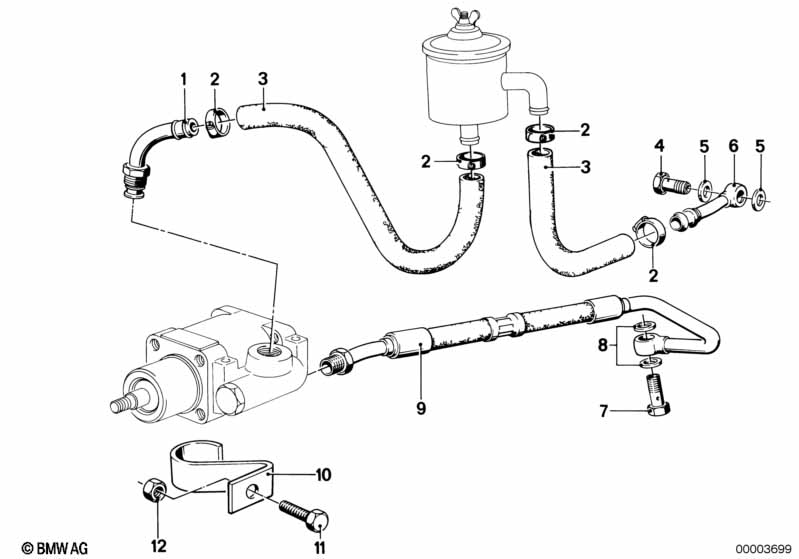

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | L FORM | 1 | 32411117545 | $26.23 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L15-19 | X | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 03 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 04 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Connector | 1 | 12/1981 | 32411124696 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A14X20-ALMG | 2 | 32411129986 | $0.15 | Shop at ECS Tuning | ||||
| 09 | Pressure hose assy | 1 | 32411120746 | $167.40 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 1X22 | 1 | 07119977248 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6-10 ZN | 1 | 12/1983 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 12 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
