Hydro steering-oil pipes for BMW 3 Series E21 320 (1979)

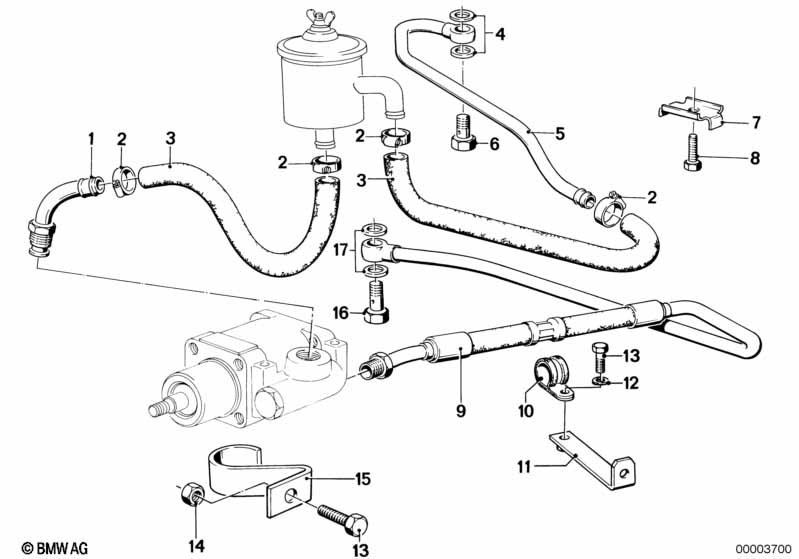

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | L FORM | 1 | 32411117545 | $26.23 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 09/1981 | 32411121435 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 07 | Clamp | 1 | 17221116130 | $2.85 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 09 | Pressure hose assy | 1 | 32411123522 | ENDED | Shop at ECS Tuning | |||||
| 10 | Clamp | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 11 | Bracket | 1 | 32411123529 | ENDED | Shop at ECS Tuning | |||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M6-10 ZN | 1 | 09/1983 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 14 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Clamp | 1X22 | 1 | 07119977248 | Shop at ECS Tuning | |||||
| 16 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 17 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 17 | Gasket ring | A14X20-ALMG | 2 | 32411129986 | $0.15 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Hydro steering-oil pipes?
- This technical diagram illustrates the Hydro steering-oil pipes within the Steering group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Connector (Part #32411117545).
- Which models use the hardware listed in this Hydro steering-oil pipes?
- The hardware and components featured in the Hydro steering-oil pipes are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Connector (32411117545) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-oil pipes assembly?
- Each item in the Hydro steering-oil pipes corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Connector by locating its position on the schematic, which then links to the official BMW part number 32411117545 for the Steering section.
