Hydro steering-oil pipes for BMW 7 Series E32 730iL (1994)

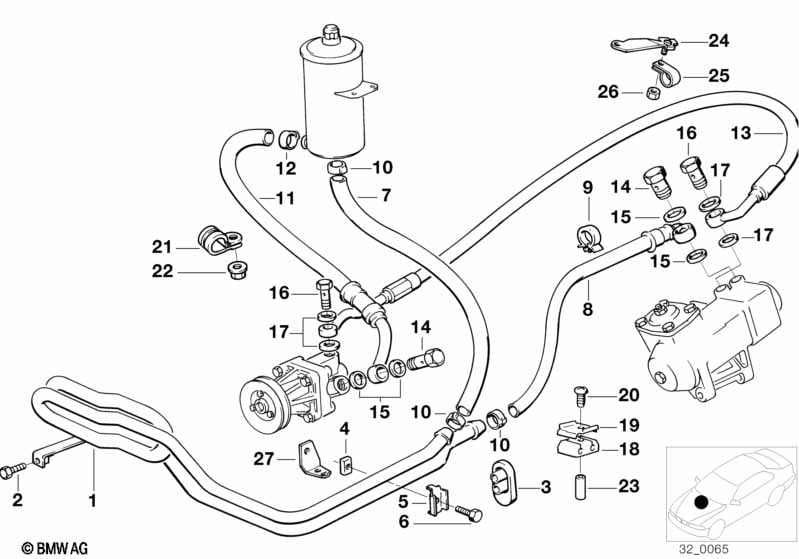

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Rubber grommet | 1 | 03/1988 | 32411130712 | $4.85 | Shop at ECS Tuning | ||||
| 03 | Rubber grommet | 1 | 03/1988 | 32411130712 | $4.85 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1 | 03/1988 | 17221116130 | $2.85 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1 | 03/1988 | 17221116130 | $2.85 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 04/1991 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 04/1991 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 07 | Hose | 12X18MM | 1 | 03/1988 | 32411131524 | $35.95 | Shop at ECS Tuning | |||
| 07 | Hose | 12X18MM | 1 | 03/1988 | 32411131524 | $35.95 | Shop at ECS Tuning | |||
| 08 | Return pipe | 1 | 03/1988 | 32411131342 | $41.26 | Shop at ECS Tuning | ||||
| 09 | Tubing support | D=18,4 | 1 | 03/1988 | 61131368928 | $0.35 | Shop at ECS Tuning | |||
| 09 | Tubing support | D=18,4 | 1 | 03/1988 | 61131368928 | $0.35 | Shop at ECS Tuning | |||
| 10 | Hose clamp | D=16,6-20MM | 3 | 03/1988 | 16121180242 | $1.08 | Shop at ECS Tuning | |||
| 10 | Hose clamp | D=16,6-20MM | 3 | 03/1988 | 16121180242 | $1.08 | Shop at ECS Tuning | |||
| 11 | Intake manifold | 1 | 08/1990 | 32411137524 | $32.68 | Shop at ECS Tuning | ||||
| 11 | Intake manifold | 1 | 08/1990 | 32411137524 | $32.68 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 11 | Intake manifold | 1 | 03/1988 | 32411135313 | $32.68 | Shop at ECS Tuning | ||||
| 11 | Intake manifold | 1 | 03/1988 | 32411135313 | $32.68 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | D=20,9-24,1 | 1 | 03/1988 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 12 | Hose clamp | D=20,9-24,1 | 1 | 03/1988 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 13 | Pressure hose assy | 1 | 03/1988 | 32411138101 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hollow bolt | M16X28 | 2 | 03/1988 | 32416852470 | Shop at ECS Tuning | ||||
| 14 | Hollow bolt | M16X28 | 2 | 03/1988 | 32416852470 | Shop at ECS Tuning | ||||
| 15 | Gasket ring | A16X20-CUSN | 2 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 16 | Hollow bolt | M14X1,5X26 | 2 | 03/1988 | 32416852469 | Shop at ECS Tuning | ||||
| 16 | Hollow bolt | M14X1,5X26 | 2 | 03/1988 | 32416852469 | Shop at ECS Tuning | ||||
| 17 | Gasket ring | A14X20-CUSN | 4 | 03/1988 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 17 | Gasket ring | A14X20-CUSN | 4 | 03/1988 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
