Hydro steering box - worm gear/mounting for BMW 5 Series E12 525 (1976)

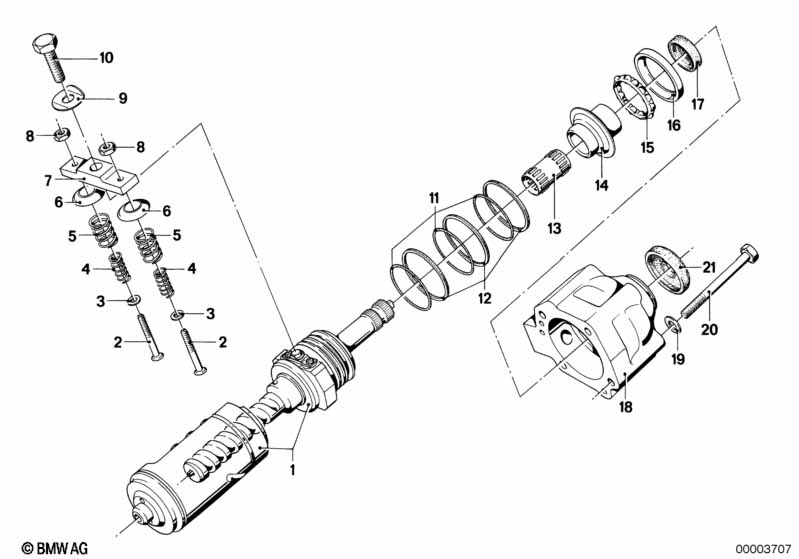

This Hydro steering box - worm gear/mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Worm with piston | 1 | 32131112890 | ENDED | Shop at ECS Tuning | |||||
| 02 | Adjuster | 2 | 32131111872 | ENDED | Shop at ECS Tuning | |||||
| 03 | Washer | 2 | 32131111876 | ENDED | Shop at ECS Tuning | |||||
| 04 | Compression spring | 2 | 32131111878 | ENDED | Shop at ECS Tuning | |||||
| 05 | Compression spring | 2 | 32131111879 | ENDED | Shop at ECS Tuning | |||||
| 06 | Diaphragm spring | 2 | 32131111877 | ENDED | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 32131111880 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex nut | M3 | 2 | 07119922016 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Securing plate | 1 | 32131111881 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M5X15 | 1 | 07119913235 | $3.51 | ENDED | Shop at ECS Tuning | |||
| 11 | O-ring | 3 | 32131104790 | $1.71 | ENDED | Shop at ECS Tuning | ||||
| 12 | Gasket ring | 3 | 32131104789 | $3.52 | ENDED | Shop at ECS Tuning | ||||
| 13 | Needle cage | 0,000-0,002 MM | 1 | 32131104791 | $8.93 | ENDED | Shop at ECS Tuning | |||
| 13 | Needle cage | 0,002-0,004 MM | 1 | 32131104792 | ENDED | Shop at ECS Tuning | ||||
| 13 | Needle cage | 0,004-0,006 MM | 1 | 32131104793 | ENDED | Shop at ECS Tuning | ||||
| 13 | Needle cage | 0,006-0,008 MM | 1 | 32131104794 | ENDED | Shop at ECS Tuning | ||||
| 14 | Guide ring | D=28,000 MM | 1 | 32131104795 | ENDED | Shop at ECS Tuning | ||||
| 14 | Guide ring | D=28,015 MM | 1 | 32131104796 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bearing ball cage | 1 | 32131104801 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 16 | Guide ring | 1 | 32131104835 | $27.62 | ENDED | Shop at ECS Tuning | ||||
| 17 | Shaft seal | 1 | 32131123773 | ENDED | Shop at ECS Tuning | |||||
| 18 | Valve housing | 1 | 32131106750 | ENDED | Shop at ECS Tuning | |||||
| 19 | Washer | 4 | 32131104786 | ENDED | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X75 | 4 | 07119912549 | ENDED | Shop at ECS Tuning | ||||
| 21 | Protection cap | 1 | 32131126931 | $2.73 | Shop at ECS Tuning |
