Hydro steering-servotronic for BMW 7 Series E32 750iLS (1994)

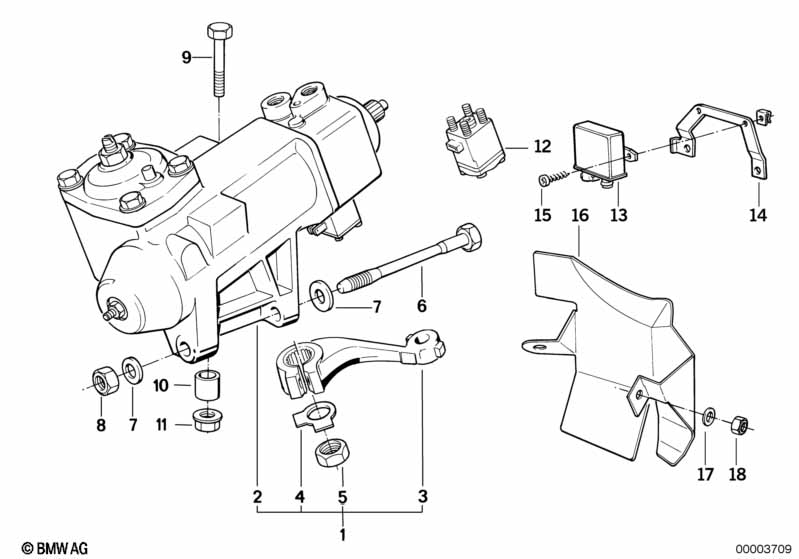

This Hydro steering-servotronic technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Exch. hydro steering gear | 1 | 32131136828 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Securing plate | 1 | 32211123473 | $7.32 | Shop at ECS Tuning | |||||
| -- | Pitman arm | 1 | 32211134277 | $74.53 | Shop at ECS Tuning | |||||
| -- | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 03 | Pitman arm | 1 | 32211134277 | $74.53 | Shop at ECS Tuning | |||||
| 04 | Securing plate | 1 | 32211123473 | $7.32 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M22X1,5 | 1 | 07119921087 | $10.95 | Shop at ECS Tuning | ||||
| 06 | Fit bolt | 1 | 32131136045 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | 13X30X4MM | 2 | 33171125439 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 32101134058 | $11.20 | ENDED | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M10 | 1 | 32101133077 | $2.50 | ENDED | Shop at ECS Tuning | |||
| 12 | Torque converter servotronic | 1 | 32411134770 | $239.28 | Shop at ECS Tuning | |||||
| 13 | Control unit servotronic | 1 | 09/1993 | 32431162705 | $213.23 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 32411132677 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST3,9X16-C-Z2 | 2 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Heat resistant plate | 1 | 32411134590 | $20.62 | Shop at ECS Tuning | |||||
| 17 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Self-locking hex nut | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iLS Hydro steering-servotronic?
- This technical diagram illustrates the Hydro steering-servotronic within the Steering group for the 7 Series E32 750iLS produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Exch. hydro steering gear (Part #32131136828).
- Which models use the hardware listed in this Hydro steering-servotronic?
- The hardware and components featured in the Hydro steering-servotronic are specific to the 7 Series E32 750iLS produced during 1994. These technical specifications ensure that parts like the Exch. hydro steering gear (32131136828) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-servotronic assembly?
- Each item in the Hydro steering-servotronic corresponds to the numbered list below the illustration. For the 7 Series E32 750iLS, you can identify the Exch. hydro steering gear by locating its position on the schematic, which then links to the official BMW part number 32131136828 for the Steering section.
