Hydro steering-vane pump/bearing support for BMW 6 Series E24 630CSi (1977)

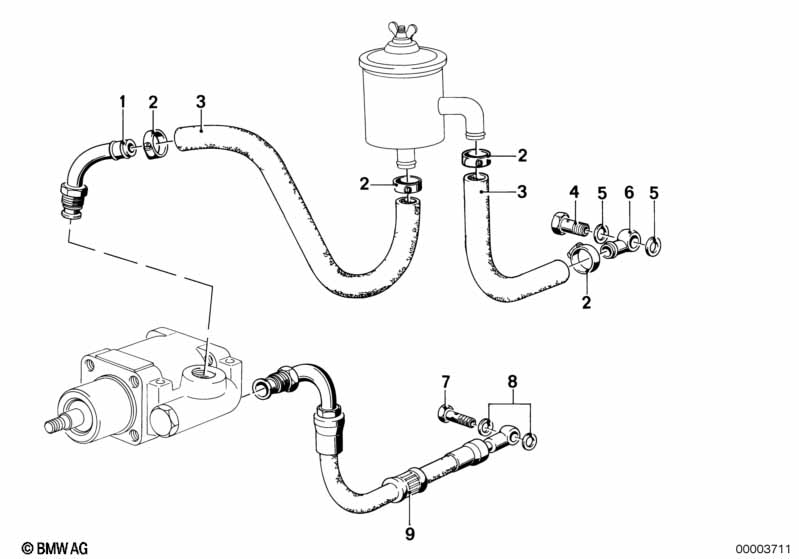

This Hydro steering-vane pump/bearing support technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 04/1981 | 32411250620 | $30.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting plate | 1 | 04/1981 | 32411276638 | $43.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Supporting plate | 1 | 04/1981 | 32411265846 | $5.07 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | X | 04/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 05 | Washer | 3 | 04/1981 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 0,75MM | 1 | 04/1981 | 32411251264 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 1,0MM | 1 | 04/1981 | 32411251265 | $0.59 | ENDED | Shop at ECS Tuning | ||
| 07 | Hex bolt | M8X20-ZNNIV SI | 4 | 04/1981 | 07119903039 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X28-ZN | 2 | 04/1981 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | ||
| 09 | Hex bolt | M8X35 | 2 | 04/1981 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M8X25-8.8-ZNNIV | 3 | 04/1981 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M8X25 | 3 | 04/1981 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 11 | Hex bolt | M8X45 | 1 | 04/1981 | 07119913681 | $0.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi Hydro steering-vane pump/bearing support?
- This technical diagram illustrates the Hydro steering-vane pump/bearing support within the Steering group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #32411250620).
- Which models use the hardware listed in this Hydro steering-vane pump/bearing support?
- The hardware and components featured in the Hydro steering-vane pump/bearing support are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the Supporting bracket (32411250620) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump/bearing support assembly?
- Each item in the Hydro steering-vane pump/bearing support corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 32411250620 for the Steering section.
