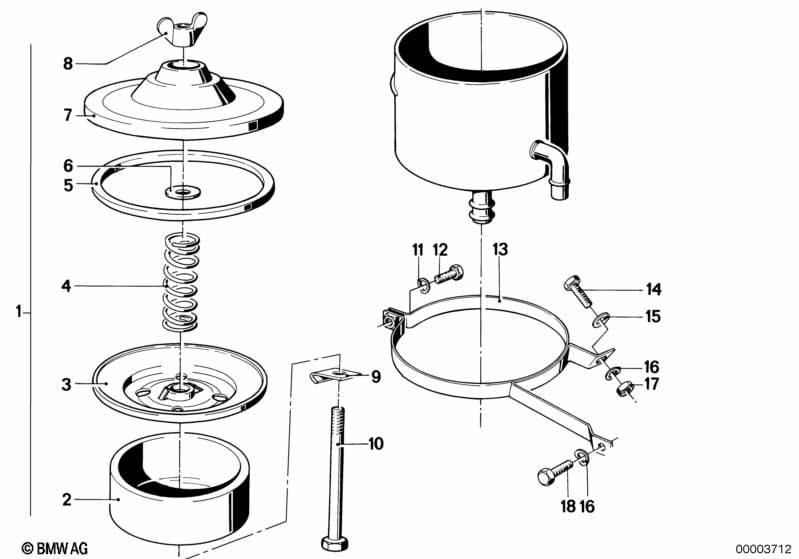

Oil carrier / Single parts for BMW 5 Series E12 530i (1975)
This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | 1 | 32411101150 | $117.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Oil filter | 1 | 32411104357 | $33.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 32411105163 | ENDED | Shop at ECS Tuning | |||||
| 04 | Compression spring | 1 | 32411105164 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 32411128929 | $5.07 | Shop at ECS Tuning | |||||
| 06 | Positioning plate | 1 | 32411121873 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 32411121836 | $42.71 | Shop at ECS Tuning | |||||
| 08 | Ring nut | 1 | 61211233457 | $0.88 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 32411105162 | $0.43 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X110 | 1 | 07119912378 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring washer Black | B6-ZN | 1 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 11 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 32411115962 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 15 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 16 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Hex nut | M8-8-ZNS3 | 1 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 17 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
