Hydro steering-oil pipes for BMW 3 Series E30 318i (1989)

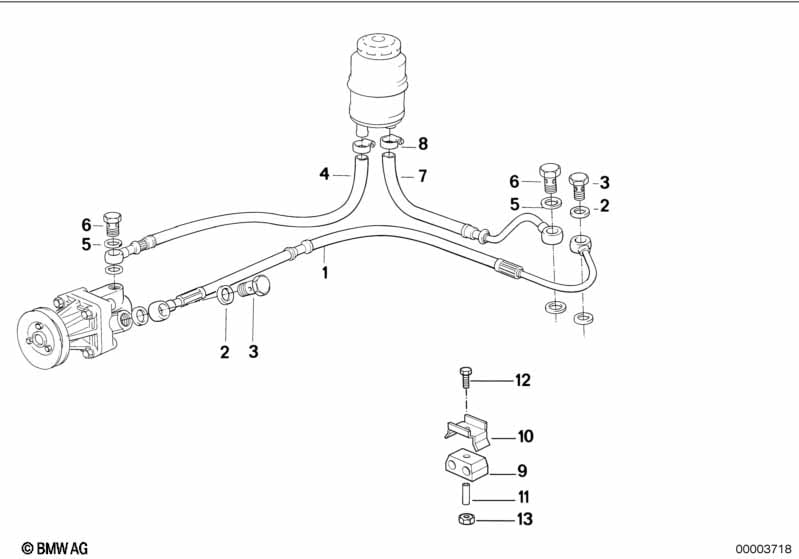

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy | 1 | 06/1988 | 32411141427 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | A14X20-CUSN | 4 | 06/1988 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 02 | Gasket ring | A14X20-ALMG | 4 | 06/1988 | 32411129986 | $0.15 | Shop at ECS Tuning | |||
| 03 | Hollow bolt | M14X1,5X26 | 2 | 06/1988 | 06/1994 | 32416852469 | Shop at ECS Tuning | |||
| 04 | Intake manifold | 1 | 06/1988 | 32411133400 | $47.88 | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | M16X28 | 2 | 06/1988 | 02/1994 | 32416783887 | $3.98 | ENDED | Shop at ECS Tuning | |
| 07 | Return pipe | 1 | 06/1988 | 32411134459 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Hose clamp | L18-24 | 2 | 06/1988 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 09 | Rubber Mounting | 1 | 06/1988 | 32411125162 | Shop at ECS Tuning | |||||
| 10 | Support pressure hose assy | 1 | 06/1988 | 32411125658 | Shop at ECS Tuning | |||||
| 11 | Bush | 1 | 06/1988 | 32411134464 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M4X35 | 1 | 06/1988 | 07119912076 | $0.36 | Shop at ECS Tuning | |||
| 13 | Hex nut | M4-A2-70 | 1 | 06/1988 | 07129906098 | $1.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Hydro steering-oil pipes?
- This technical diagram illustrates the Hydro steering-oil pipes within the Steering group for the 3 Series E30 318i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy (Part #32411141427).
- Which models use the hardware listed in this Hydro steering-oil pipes?
- The hardware and components featured in the Hydro steering-oil pipes are specific to the 3 Series E30 318i produced during 1989. These technical specifications ensure that parts like the Pressure hose assy (32411141427) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-oil pipes assembly?
- Each item in the Hydro steering-oil pipes corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Pressure hose assy by locating its position on the schematic, which then links to the official BMW part number 32411141427 for the Steering section.
