Power steering for BMW 7 Series E23 728 (1979)

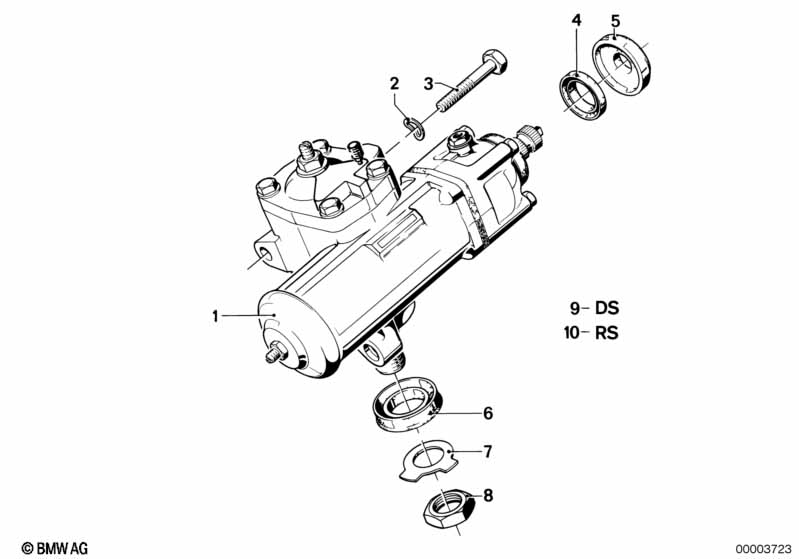

This Power steering technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. hydro steering gear | 1 | 08/1978 | 09/1979 | 32131123137 | $2520.74 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | B10-ZNS3 | 3 | 09/1979 | 07119904463 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M10X50 | 3 | 09/1979 | 07119913859 | $0.89 | Shop at ECS Tuning | |||
| 04 | Shaft seal | 1 | 09/1979 | 32131128686 | $12.81 | ENDED | Shop at ECS Tuning | |||
| 05 | Protection cap | 1 | 09/1979 | 32131126931 | $2.73 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 1 | 09/1979 | 32131123768 | $12.12 | Shop at ECS Tuning | ||||
| 07 | Securing plate | 1 | 09/1979 | 32211118218 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M26X1,5 | 1 | 09/1979 | 07119921671 | ENDED | Shop at ECS Tuning | |||
| 09 | Gasket set hydro steering | 1 | 09/1979 | 32131123767 | $40.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Repair kit hydro steering box | 1 | 09/1979 | 32139055594 | $124.22 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
