Oil carrier / Single parts for BMW 7 Series E23 735i (1982)

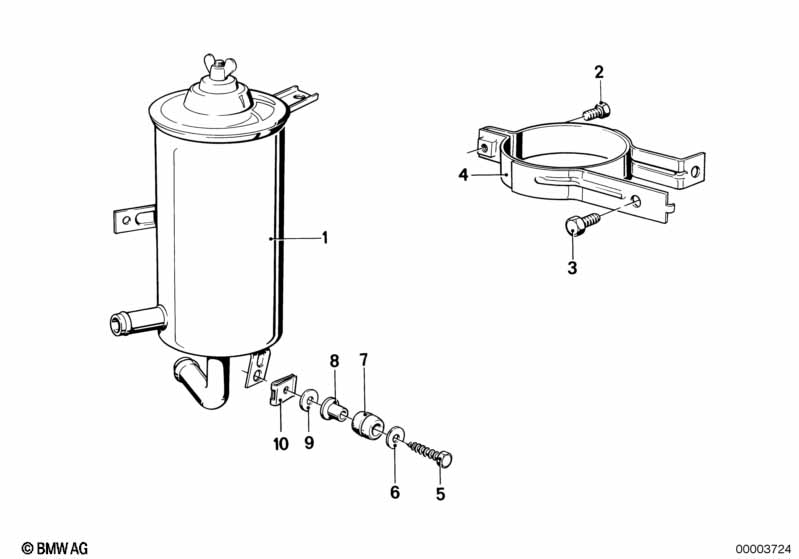

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | 1 | 04/1981 | 32411130478 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST8X38-C | 1 | 07119916833 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Washer | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 1 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 08 | Sleeve | 1 | 34331152502 | $3.00 | Shop at ECS Tuning | |||||
| 09 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST8,0-1 | 1 | 07129925749 | $0.41 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Oil carrier / Single parts?
- This technical diagram illustrates the Oil carrier / Single parts within the Steering group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #32411130478).
- Which models use the hardware listed in this Oil carrier / Single parts?
- The hardware and components featured in the Oil carrier / Single parts are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Oil carrier (32411130478) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil carrier / Single parts assembly?
- Each item in the Oil carrier / Single parts corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Oil carrier by locating its position on the schematic, which then links to the official BMW part number 32411130478 for the Steering section.
