Hydro steering-oil pipes for BMW 7 Series E23 735i (1985)

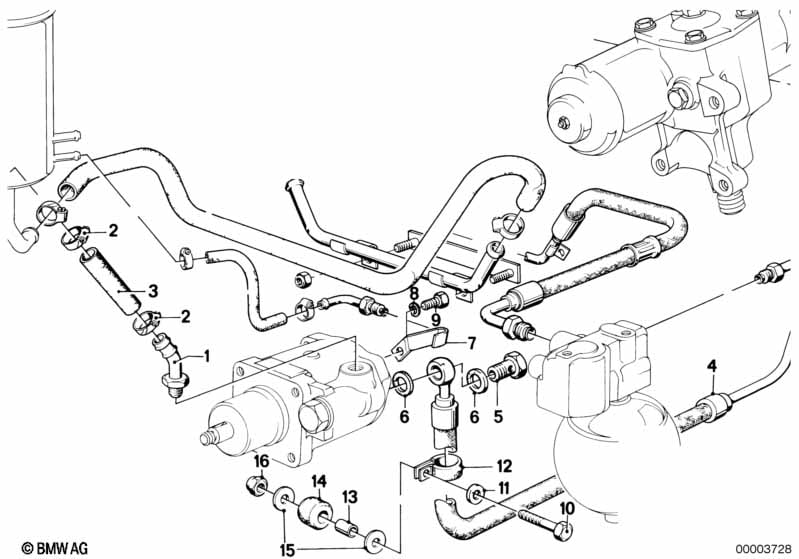

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | 1 | 01/1982 | 32411117188 | $30.03 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L18-24 | 6 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 03 | Hose | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 04 | Pressure hose assy | 1 | 04/1979 | 32411128160 | $117.02 | Shop at ECS Tuning | ||||
| 05 | Hollow bolt | M16X27 | 1 | 32411125492 | $8.68 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A16X20-CU | 2 | 07119963253 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 32411120774 | ENDED | Shop at ECS Tuning | |||||
| 08 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X40 | 1 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 11 | Washer | 1 | 51326654195 | $0.17 | Shop at ECS Tuning | |||||
| 12 | Clamp | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 1 | 32411119113 | ENDED | Shop at ECS Tuning | |||||
| 14 | Bush | 1 | 32411119114 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 2 | 32411120833 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M6-10 ZN | 5 | 05/1986 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 16 | Self-locking hex nut | M6 ZNNIV SI | 5 | 07147575163 | $0.25 | Shop at ECS Tuning |
