Hydro steering-vane pump/single parts for BMW 7 Series E23 728i (1982)

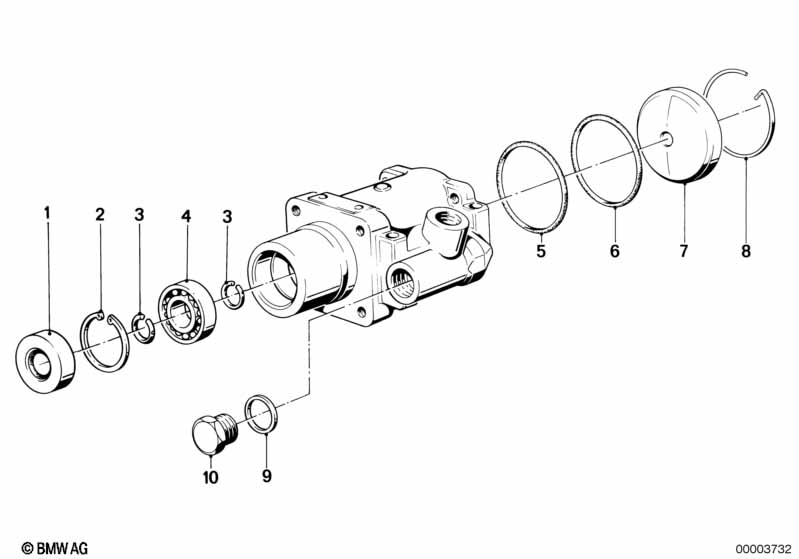

This Hydro steering-vane pump/single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO VANE PUMP ONLY APPLIES TO VANE PUMP |
|||||||||
| 01 | Shaft seal | 1 | 32411117621 | $7.80 | Shop at ECS Tuning | |||||
| 02 | Lock Ring | 42X1,75 | 1 | 07119905077 | $4.78 | Shop at ECS Tuning | ||||
| 03 | Snap ring | 20 | 2 | 07119933441 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Ball bearing | 20,0X42,0X12,0 | 1 | 32411117620 | $36.95 | ENDED | Shop at ECS Tuning | |||
| 05 | O-ring | 1 | 32411105154 | $4.76 | Shop at ECS Tuning | |||||
| 06 | O-ring | 1 | 32411105157 | $4.76 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 32411117628 | $18.76 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lock Ring | 1 | 32411105159 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A22X27-CU | 1 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Screw plug | 1 | 32411105160 | $3.77 | ENDED | Shop at ECS Tuning | ||||
