Hydro steering-vane pump/single parts for BMW 3 Series E21 316 (1983)

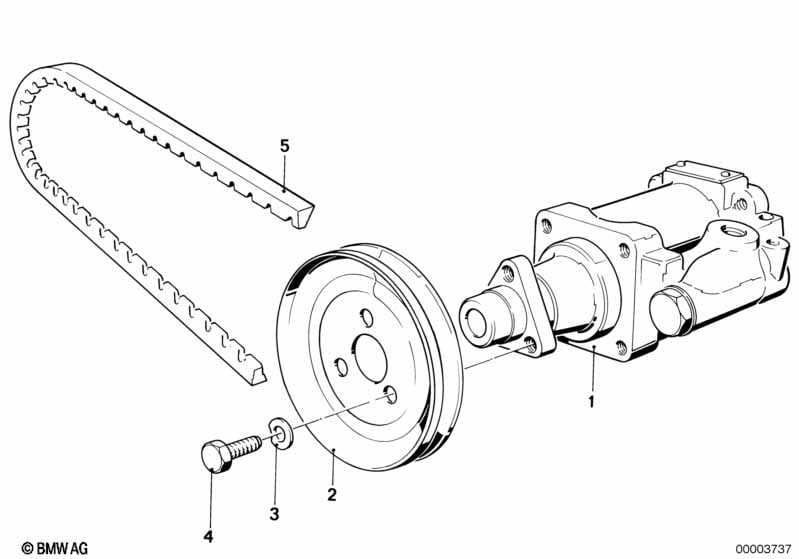

This Hydro steering-vane pump/single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vane pump | ZF | 1 | 04/1981 | 32411123634 | ENDED | Shop at ECS Tuning | |||
| 01 | Vane pump | ZF | 1 | 04/1981 | 32411127636 | $523.61 | ENDED | Shop at ECS Tuning | ||
| 02 | Pulley | 1 | 04/1981 | 32411272446 | $37.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 3 | 04/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M8X12-Z3-1 | 3 | 04/1981 | 07119913011 | $0.47 | Shop at ECS Tuning | |||
| 05 | Fan belt | 9,5X825 | 1 | 04/1981 | 32421706597 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Hydro steering-vane pump/single parts?
- This technical diagram illustrates the Hydro steering-vane pump/single parts within the Steering group for the 3 Series E21 316 produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Vane pump (Part #32411123634).
- Which models use the hardware listed in this Hydro steering-vane pump/single parts?
- The hardware and components featured in the Hydro steering-vane pump/single parts are specific to the 3 Series E21 316 produced during 1983. These technical specifications ensure that parts like the Vane pump (32411123634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump/single parts assembly?
- Each item in the Hydro steering-vane pump/single parts corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Vane pump by locating its position on the schematic, which then links to the official BMW part number 32411123634 for the Steering section.
