Hydro steering-vane pump/single parts for BMW 6 Series E24 628CSi (1982)

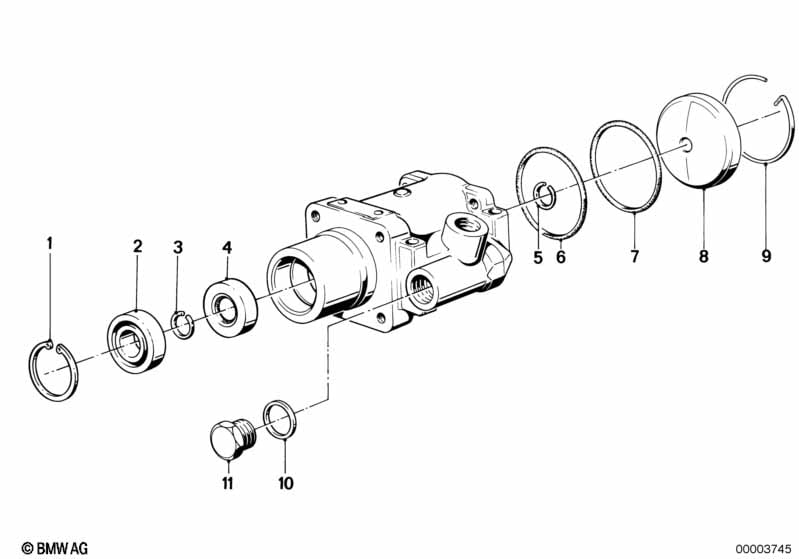

This Hydro steering-vane pump/single parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr.7671 955 120 = 32 41 1 123 633 | |||||||||
| 01 | Lock Ring | 42X1,75 | 1 | 07119905077 | $4.78 | Shop at ECS Tuning | ||||
| 02 | Ball bearing | 20,0X42,0X12,0 | 1 | 32411125518 | $24.07 | ENDED | Shop at ECS Tuning | |||
| 03 | Snap ring | 20 | 1 | 07119933441 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Shaft seal | 1 | 32411125519 | $12.88 | Shop at ECS Tuning | |||||
| 06 | O-ring | 1 | 32411105154 | $4.76 | Shop at ECS Tuning | |||||
| 07 | O-ring | 1 | 32411105157 | $4.76 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 32411117628 | $18.76 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lock Ring | 1 | 32411105159 | $2.44 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A22X27-CU | 1 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Screw plug | 1 | 32411105160 | $3.77 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 628CSi Hydro steering-vane pump/single parts?
- This technical diagram illustrates the Hydro steering-vane pump/single parts within the Steering group for the 6 Series E24 628CSi produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Lock Ring (Part #07119905077).
- Which models use the hardware listed in this Hydro steering-vane pump/single parts?
- The hardware and components featured in the Hydro steering-vane pump/single parts are specific to the 6 Series E24 628CSi produced during 1982. These technical specifications ensure that parts like the Lock Ring (07119905077) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump/single parts assembly?
- Each item in the Hydro steering-vane pump/single parts corresponds to the numbered list below the illustration. For the 6 Series E24 628CSi, you can identify the Lock Ring by locating its position on the schematic, which then links to the official BMW part number 07119905077 for the Steering section.
